A2 00 Gland 20mm
SKU: GLA-0029-H09
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

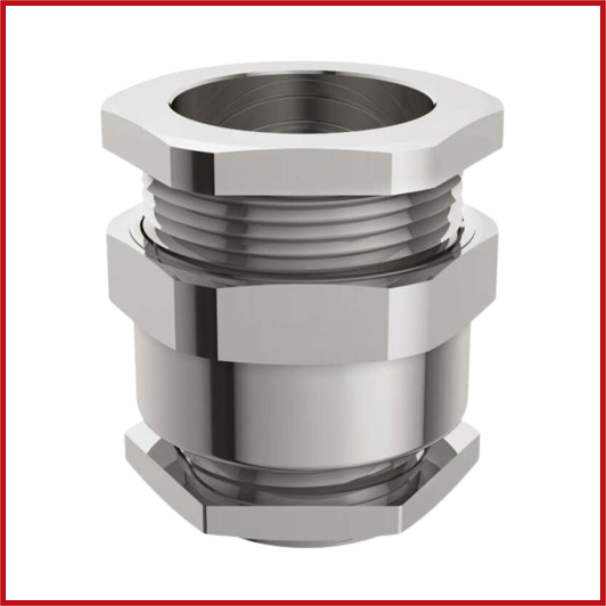

The A2-00 Metal Cable Gland 20mm is a general-purpose cable gland used to secure and seal unarmoured electrical cables as they enter electrical enclosures, control panels, junction boxes, and other equipment.
It has a nickel-plated brass structure, an M20 thread, and weatherproof sealing, making it appropriate for both indoor and outdoor electrical applications.
The A2-00 size may accommodate wires with outer diameters ranging from 3mm to 8.5mm.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Metal Cable Gland.
Series: A2.
Size: A2-00.
Thread Size: M20 x 1.5.
Cable Diameter Range: 3mm – 8.5mm.
Material: Nickel-Plated Brass.
Cable Type: Unarmoured.
IP Rating: IP66/IP68.
Thread Length: 10mm.
Finish: Nickel-Plated.
Colour: Silver.
Includes: Locknut and Sealing Washer.
Application: Electrical enclosures, control panels, junction boxes and industrial equipment.
