BW Captive Cone Gland Size 0
SKU: GLA-0032-H09
Sold by Select Automation
Final price R 86.78
R 75.46 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

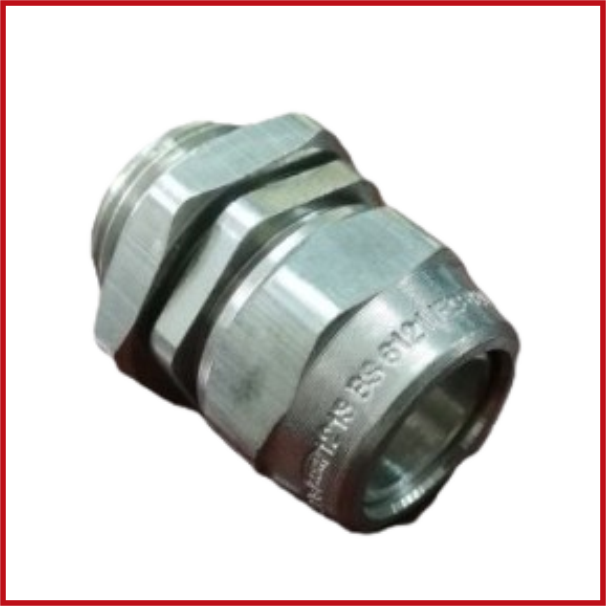

The BW Captive Cone Gland Size 0 is designed for interior application, using steel wire and aluminium armoured cables.
Two-part handling: No loose parts.
Freely rotating captive cone: Provides an armour clamp and earth bond without twisting the armour.
Material: Precision manufactured from high-quality brass (nickel plated).
Locknut: Comes with a heavy-duty locknut.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material: Precision manufactured from high-quality brass (nickel plated).
Cable Type: Suitable for steel wire armored and aluminum armored cables.
Armour Clamping: Rotating captive cone provides an armor clamp and earth bond without twisting the armor.
Weight: 0.055 kg.
Dimensions: 31 × 26 × 23 mm.
Locknut: Heavy-duty locknut included.
Installation Torque Value: 35 Nm.
Standards and Certifications: Conforms to BS 6121:Part 1, IEC/BS EN 62444, SANS 62444, and more.
Continuous Operating Temperature: -65°C to +120°C.
Ingress Protection: IP2X (without a shroud).
EMC Compatibility: EN 55011, EN 55022.
