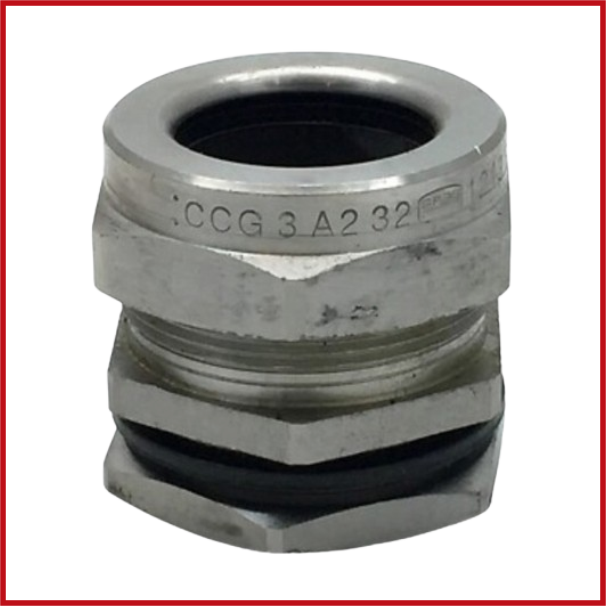

A2 Gland M20
SKU: GLA-0034-H09
Sold by Select Automation
Final price R 146.97
R 127.80 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The A2 Gland M20 is a single-compression cable gland used to terminate and secure unarmoured electrical wires as they enter electrical enclosures, control panels, junction boxes, and other equipment.
It is made of nickel-plated brass and provides a reliable mechanical connection and environmental sealing.
The CCG A2 range is appropriate for both indoor and outdoor applications, and when fitted correctly, it provides IP66/IP68 protection.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Cable Gland.
Gland Type: A2 Single Compression.
Gland Size: 1 / M20.
Thread Size: M20 × 1.5.
Cable Type: Unarmoured.
Cable Diameter Range: 11mm – 14.5mm.
Material: Nickel-Plated Brass.
Seal Material: Thermoset Elastomer.
Sealing Area: Outer Cable Sheath.
Thread Length: 10mm.
Ingress Protection: IP66/IP68.
Finish: Nickel-Plated.
Colour: Silver.
Application: Electrical enclosures, control panels, junction boxes and industrial equipment.
