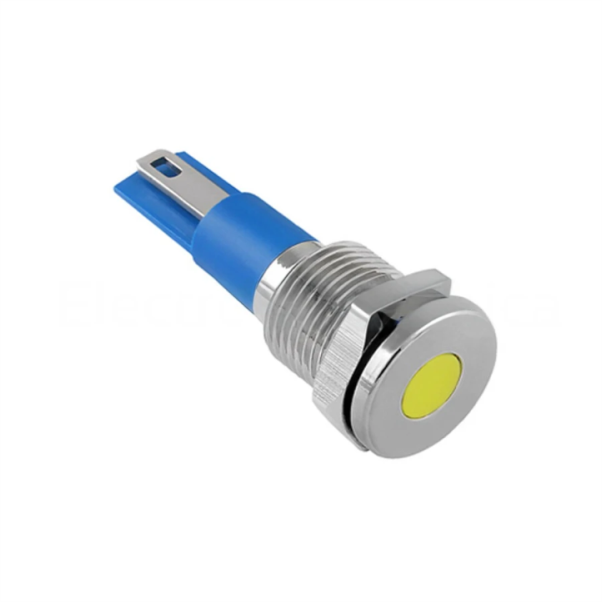

      12mm METALLIC YELLOW LED PILOT LIGHT 24VAC/DC

      SKU: GQ12T-DY24VN

      Out of stock

      Availability: Out of Stock

      Short Description
      Panel-mountable metallic LED pilot lights: Features: Compact design maximizes space. Compact design saves space. Robust, long-lasting, and little maintenance. Ø10,12, and 16 mm are the mounting sizes that are available. There are two voltage options: 12 VAC/DC and 24 VAC/DC. There are five colours of illumination: red, green, yellow, blue, and white. Applications: Heavy machinery. Equipment used in industry. Instrument control panels. Dashboards used in transportation. The gas, oil, and maritime sectors. Security and outdoor use. Vending, slots, and games.
      GQ12T-DY24VN
      Alternative image 1
      Specifications: COLOUR: Yellow VOLTAGE: 24 VAC/DC MOUNTING HOLE: Ø 12mm DESCRIPTION: Panel mount metallic LED pilot light LAMP TYPE: LED D Dot INDEX PROTECTION IP: IP67 TERMINAL TYPE: Solder / push-on 2.8 x 0.5mm BODY MATERIAL: Nickel-plated brass OPERATING TEMPERATURE: -25 ~ +55℃ PANEL THICKNESS: 1 ~ 6mm
