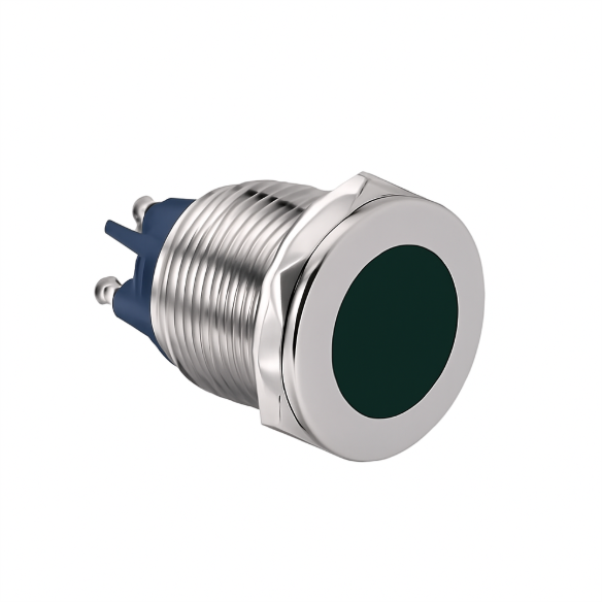

22mm METALLIC GREEN LED PILOT LIGHT 24VAC/DC
SKU: GQ22T-DLG024VN
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
LED panel-mount metallic pilot lights:
Space-saving and tiny style are among its features.
Compact design and space-saving.
Substantial, long-lasting, and low maintenance.
The mounting sizes available are Ø10,12,16, and 22 mm.
12V AC/DC and 24V AC/DC are the two available voltages.
Yellow, blue, green, red, and white are the five illumination colours.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
COLOUR: Green
SUPPLY VOLTAGE: 24 VAC/DC
MOUNTING HOLE: ⌀ 22mm
DESCRIPTION: Panel mount metallic LED pilot light
LAMP TYPE: LED (ring indication)
INDEX PROTECTION IP: IP67
TERMINAL TYPE: Solder terminal
BODY MATERIAL: Stainless steel
OPERATING TEMPERATURE: -25 - +55°C
Applications:
Industrial equipment.
Control panels for instruments.
Dashboards for transportation.
Oil and gas, as well as maritime.
Security and outdoor use.
Vending machines, slots, and gambling.
