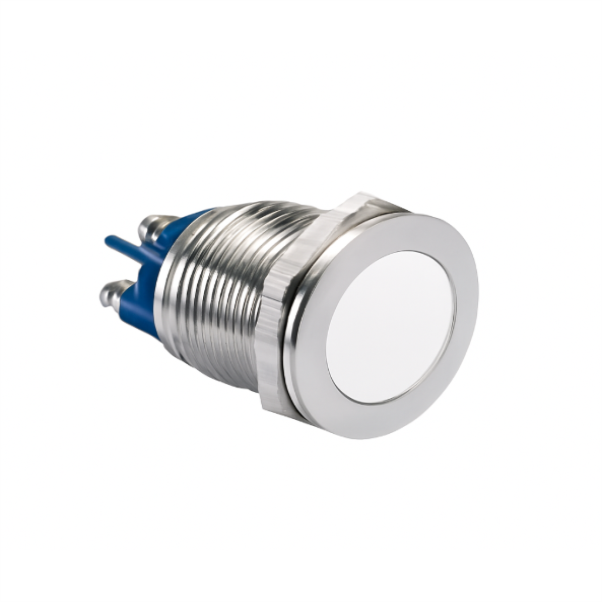

22mm METALLIC WHITE LED PILOT LIGHT 220VAC/DC
SKU: GQ22T-DLW220VN
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Panel-mounted metallic LED pilot lights:
Features:
Compact design that saves space.
Robust, long-lasting, and low maintenance.
Mounting sizes available: Ø10,12,16, and 22 mm.
12 VAC/DC and 24 VAC/DC are the two voltage possibilities.
Five hues of illumination: white, blue, yellow, green, and red.
Applications:
Industrial gear
Panels for instrument control
Dashboards for transportation
The oil and gas, and maritime sectors
Applications outside and safety
Slot machines, table games, and snack bars
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
COLOUR: White
SUPPLY VOLTAGE: 220 VAC/DC
MOUNTING HOLE: ⌀ 22mm
DESCRIPTION: Panel mount metallic LED pilot light
LAMP TYPE: LED (ring indication)
INDEX PROTECTION IP: IP67
TERMINAL TYPE: Solder terminal
BODY MATERIAL: Stainless steel
OPERATING TEMPERATURE: -25 - +55°C
