Encoder Switch GS202
SKU: GS202
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

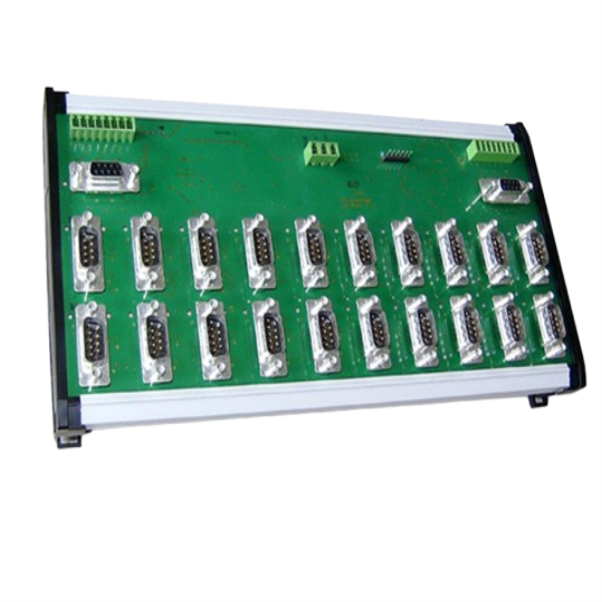

A flexible device, the Motrona GS202 Encoder-Switch may switch between several encoder inputs and produce matching outputs depending on how the control inputs are configured.
Applications needing adaptable signal distribution and routing would benefit greatly from it.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
Encoder Inputs: 20 inputs with format A, /A, B, /B, Z, /Z (RS422).
Control Inputs: 2 x 6 control inputs for HTL / PNP signals.
Encoder Outputs: 2 short-circuit-proof outputs (TTL / RS422).
Input Frequency: Up to 1 MHz.
Power Supply: 12 ... 30 VDC.
Latency Time: Less than 250 ns.
Channel Switching Time: Less than 1 ms.
Operating Temperature: 0 ... 60 °C (32 ... 140 °F).
Housing: Open plastic housing for top hat rail (EN 60715).
