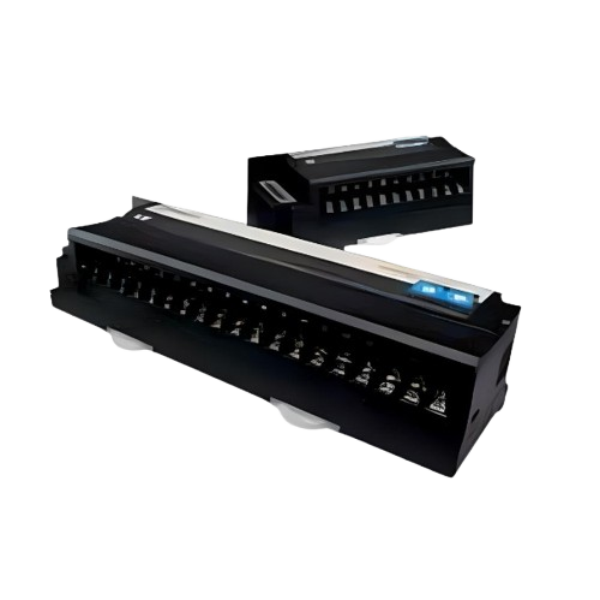

Smart I/O Block Type Modbus, DC24V (Rating), DC input 16 points
SKU: GSL-D22C
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For use in industrial automation applications, the LS Electrical Smart I/O BLOCK TYPE Modbus DC24V GDL-D22C is a flexible and effective programmable logic controller (PLC).
With its 16 DC input points, it can be used for a range of control and monitoring applications.
The Smart I/O series, of which this module is a part, is renowned for its dependable operation and simplicity of integration into current systems.
The Modbus communication protocol is supported by the GDL-D22C, which guarantees smooth connectivity and data sharing with other networked devices.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input Voltage: DC 24V.
Number of Input Points: 16.
Rated Input Current: 5mA per point.
Maximum Load: 0.5A per point, 3A per common.
Operating Temperature: 0°C to 55°C.
Storage Temperature: -25°C to 70°C.
Operating Humidity: 5% to 95% RH (non-condensing).
Storage Humidity: 5% to 95% RH (non-condensing).
Vibration Resistance:
Intermittent Vibration: 5≤f<8.4Hz, 3.5mm amplitude; 8.4≤f≤150Hz, 9.8m/s² acceleration.
Continuous Vibration: 5≤f<8.4Hz, 1.75mm amplitude; 8.4≤f≤150Hz, 4.9m/s² acceleration.
Communication Protocol: Modbus.
Connector Type: 5-pin connector for communication cables.
LED Indicators: Power, Module Status, Network Status.
Mounting: DIN rail mountable.
