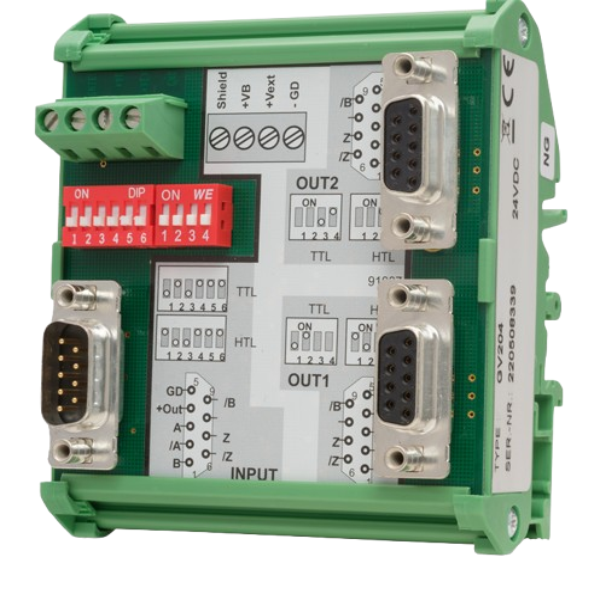

Pulse Splitter for Incremental Encoder Signals GV204
SKU: GV204
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The purpose of the Motrona GV204 Pulse Splitter is to precisely and conveniently distribute the output signals of incremental pulse generators to two terminals.
It can be used as a level converter between RS422 and TTL signals as well as HTL (10...30 VDC) signals.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
Input Signals: A, /A, B, /B, Z, /Z (TTL / RS422) or A, B, Z (HTL).
Output Signals: 2 pulse outputs with format A, /A, B, /B, Z, /Z with individual adjustable output levels.
Input Frequency: Up to 750 kHz (TTL) or 300 kHz (HTL).
Power Supply: Optionally 5 VDC or 10 ... 30 VDC.
Auxiliary Voltage: +5 V for encoder supply.
Housing: Snap-on housing for top hat rail (EN 60715).
