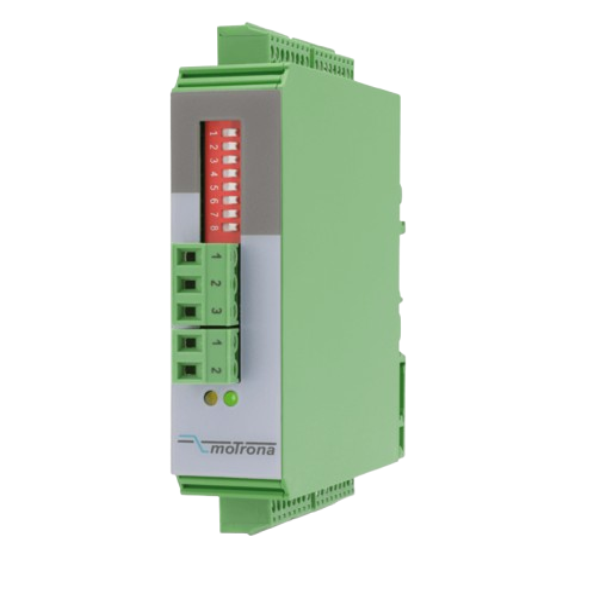

Pulse Switch Distributor and Splitter for Incremental Encoder Signals GV210
SKU: GV210
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A flexible tool for converting incremental encoder signals between HTL (10...30 VDC) and RS422/TTL formats is the Motrona GV210 Dual Level Converter.
Additionally, it can be used as a switch and signal splitter, enabling contactless and bounce-free encoder signal switching.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
Inputs: 2 pulse inputs with format A, B, Z (HTL) or A, /A, B, /B, Z, /Z (RS422).
Output: 2 pulse outputs with format A, B, Z (HTL) or A, /A, B, /B, Z, /Z (RS422 / TTL), each output adjustable separately.
Input Frequency: Up to 250 kHz for asymmetrical signals and up to 1 MHz for symmetric signals.
Control Inputs: 2 control inputs for HTL / PNP signals (10 ... 30 VDC).
Power Supply: 12 ... 30 VDC.
Housing: Snap-on housing for top hat rail (EN 60715).
