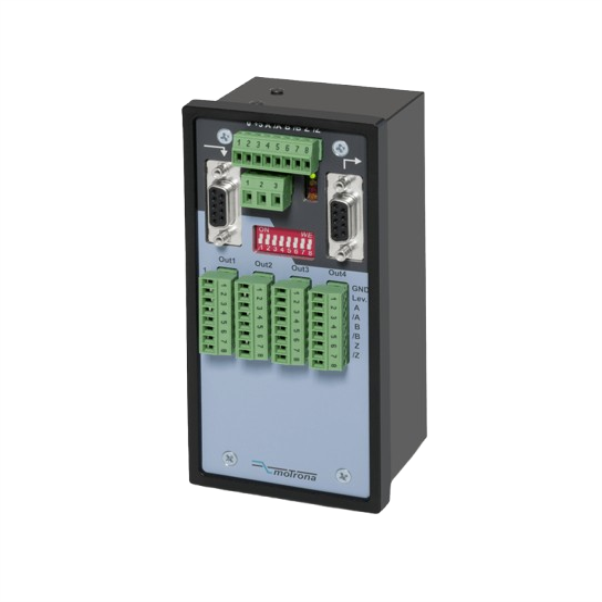

Impulse Distributor for Incremental Encoder with Potential Separation 4 Outputs GV461
SKU: GV461
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Distributing the output signals of incremental encoders or measuring systems to four outputs with possible separation is the purpose of the Motrona GV461 Impulse Distributor.
In addition to the outputs being cascadable to numerous units without terminal loss, this guarantees clean and dependable signal delivery.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
Input Signals: A, /A, B, /B, Z, /Z (HTL or RS422).
Output Signals: 4 push-pull outputs with the same format as the input signals.
Input Frequency: Up to 200 kHz for HTL or 500 kHz for RS422 / TTL.
Power Supply: 10 ... 30 VDC.
Potential Separation: Between input and output.
Extended Temperature Range: -4°C to +60°C (20°F to 140°F).
Housing: Snap-on housing for top hat rail (EN 60715).
Dimensions: 72 x 144 x 61 mm (2.83 x 4.89 x 2.38 inches).
Weight: Approx. 400 g.
