Universal Impulse Distributor for Incremental Encoder, 8 Outputs
SKU: GV470
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

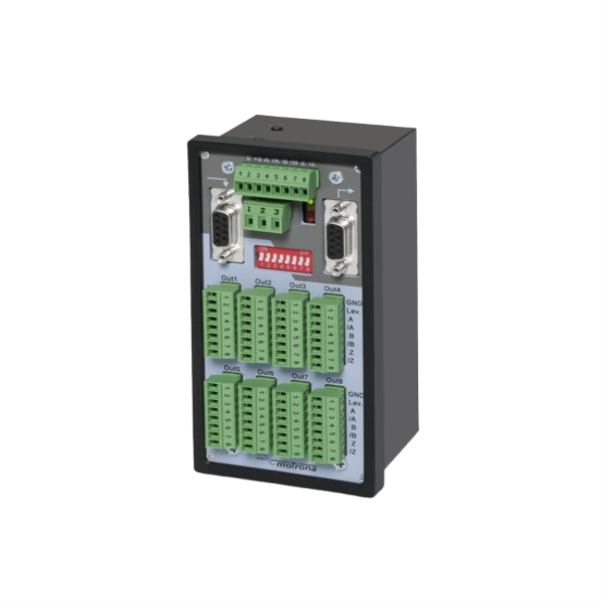

Distributing incremental encoder signals to several outputs is the purpose of the Motrona GV470 Universal Impulse Distributor.
Both TTL/RS422 and HTL (High Threshold Logic) signals can be handled by this adaptable device, which makes it appropriate for a variety of industrial applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
1 pulse input with format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422].
Select-input for PNP signals [10 ... 30 VDC].
Input frequency up to 200 kHz for HTL or 500 kHz for RS422 / TTL.
8 push-pull outputs, formats correspond to the input signals, but with individual assignment for each output.
Power supply 10 ... 30 VDC.
Industrial temperature range +32° ... 122° F (0°C ... +50°C).
Snap-on housing for top hat rail (according to EN 60715).
LEDs for indication of the input pulses.
Dimensions W x H x D = 72 x 144 x 61 mm (2.83 x 4.89 x 2.38'').
Consumption (without encoder supply) approx. 40 mA.
Input level HTL asymmetrical (no inverted track) Low: < 4 V, High: > 10 V.
Input level "Select"-Input Low: < 4 V, High: > 10 V.
Cascader-input A, B, Z, Pegel 5 V.
[CMOS, Low < 0,8 V, High > 3,5 V].
Signal delay 400 ns.
Weight approx. 400 g.
Storage -22° F ... +167° F (-30° ... +75° C).
Conformity and standards: EMV 2004/108/EG: EN 61000-6-2, EN 61000-6-3.
