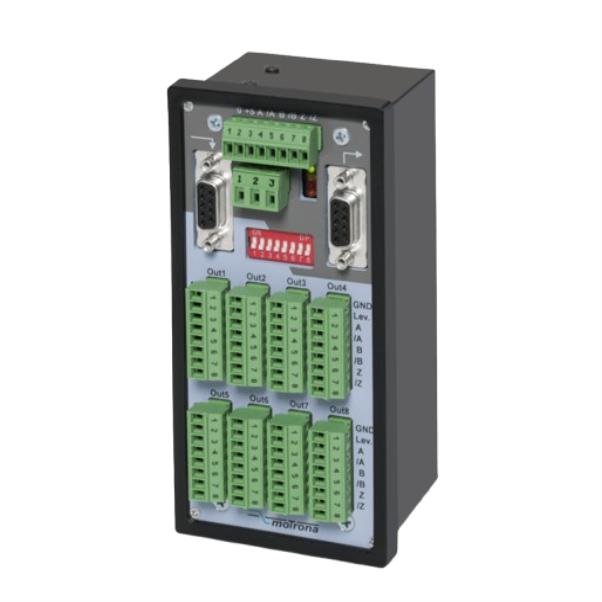

Pulse Distributor for Incremental Encoder, GV480
SKU: GV480
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A multipurpose tool, the Motrona GV480 Pulse Distributor distributes the output signals of measurement systems or incremental encoders to up to eight outputs while maintaining total electrical isolation.
Even in settings with unfavourable parameters like EMC, grounding, or possible shifts, this guarantees clear and dependable signal dissemination.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
Input Signals: A, /A, B, /B, Z, /Z (HTL or RS422).
Output Signals: 8 push-pull outputs with the same format as the input signals.
Input Frequency: Up to 200 kHz for HTL or 500 kHz for RS422 / TTL.
Power Supply: 10 ... 30 VDC.
Electrical Isolation: Complete electrical isolation of all input and output circuits, including the supply.
Auxiliary Voltage: Short-circuit-proof auxiliary voltage for the encoder supply.
Extended Temperature Range: -20°C to +60°C.
Housing: Snap-on housing for top hat rail (EN 60715).
Dimensions: 72 x 144 x 60.5 mm (2.83 x 4.89 x 2.38 inches).
Weight: Approx. 400 g.
