Grandstream WiFi 6 Mesh router
SKU: GWN7062E
Price on request
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The GWN7062E is a secure dual-band AX3000 router that uses Wi-Fi 6 (802.11ax) technology.
The GWN7062E offers 2.4G 2×2:2 and 5G 3x3:2 MU-MIMO with XTRA Range technology with beamforming for maximum network throughput and extended Wi-Fi coverage range, as well as support for wireless mesh networks, making it perfect for small offices, home offices, and remote workers.
The GWN7062E has a strong 1.3GHz dual-core processor and supports up to 128 wireless devices, making it ideal for smart office and home automation, 4K Ultra HD streaming, web meetings, video conferencing, and online gaming.
It provides powerful routing and switching capabilities, as well as VPN support for secure intra- and inter-office communication.
The GWN7062E offers parental controls, including time management, content restriction, and daily/weekly statistics, to ensure family safety while online.
This router also has enterprise-grade security features to provide safe Wi-Fi and VPN connectivity, such as unique security certificates and random default passwords.
The GWN7062E has a built-in controller integrated into the product's online user interface to guarantee simple installation and management.
It is compatible with GDMS Networking and GWN Manager, Grand stream’s free cloud and on-premise Wi-Fi management solutions.
The GWN7062E is the perfect router for expanding homes, small offices, business networks, and more because it combines faster Wi-Fi speeds with cutting-edge capabilities like VPN and intelligent QoS.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax.
Antennas: 1x 5GHz: maximum gain 3.4dBi.
2x 2.4GHz&5GHz: maximum gain 4.7dBi for 2.4GHz, 4.3dBi for 5GHz.
Wi-Fi Data Rates:
5G:
IEEE 802.11ax: 7.3 Mbps to 2402 Mbps.
IEEE 802.11ac: 6.5 Mbps to 1732 Mbps.
IEEE 802.11n: 6.5Mbps to 300Mbps.
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps.
2.4G:
IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps.
IEEE 802.11n: 6.5Mbps to 300Mbps.
IEEE 802.11b: 1, 2, 5.5, 11 Mbps.
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps.
Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network.
Frequency Bands: 2.4GHz radio: 2400-2483.5MHz.
5GHz radio: 5150-5895MHz.
Not all frequency bands can be used in all regions.
Channel Bandwidth: HT 20/40, VHT 20/40/80, HE 20/40/80/160.
Security: WPA/WPA2, WPA2, WPA2/WPA3, WPA3; anti-hack security boot and critical data/control lockdown via digital signatures; unique security certificate and random default password per device; security firewall including DoS, blocklist and URL content filtering; application monitoring and traffic statistics with DPI.
MU-MIMO:
2×2: 2 2.4GHz.
3×3: 2 5GHz.
Maximum TX Power:
2.4G: 24dBm.
5G: 26dBm.
Maximum power varies by country, frequency band and MCS rate.
Receiver Sensitivity:
2.4G:
802.11b: -96dBm@1Mbps, -88dBm@11Mbps.
802.11g: -93dBm@6Mbps, -75dBm@54Mbps.
802.11n 20MHz: -73dBm@MCS7.
802.11n 40MHz: -70dBm@MCS7.
802.11ax 20MHz: -60dBm@MCS11.
802.11ax 40MHz: -58dBm@MCS11.
5G:
802.11a: -92dBm@6Mbps, -74dBm@54Mbps.
802.11n 20MHz: -73dBm@MCS7.
802.11n 40MHz: -70dBm@MCS7.
802.11ac 20MHz: -67dBm@MCS8.
802.11ac 40MHz: -63dBm@MCS9.
802.11ac 80MHz: -59dBm@MCS9.
802.11ax 20MHz: -60dBm@MCS11.
802.11ax 40MHz: -58dBm@MCS11.
802.11ax 80MHz: -56dBm@MCS11.
802.11ax 160MHz: -52dBm@MCS11.
SSIDs: 4 SSIDs total.
Concurrent Wireless Clients: Up to 128 wireless clients.
Networking Interfaces: 3x autosensing 10/100/1000Mbps Ethernet ports.
Auxiliary Ports: 1x SYNC, 1x POWER, 1x RESET Pinhole.
Mounting: Desktop or wall-mounting.
LED: 1x tri-colour LED for device tracking and status indication.
Network Protocols: IPv4, IPv6, 802.1p, 802.11e/WMM, DSCP.
QoS:
Support 8 queues with multiple traffic priority and bandwidth.
APP QoS.
QoS rules.
NAT: DDNS, Port Forwarding, DMZ, UPnP.
VPN:
Supports 1 VPN tunnel:
L2TP Client.
PPTP Client.
IPSec Site-to-Site & Client-to-Site.
OpenVPN® Server.
WireGuard® Site-to-Site & Peer-to-Site.
Networking Management:
Embedded controller (can only manage itself).
GDMS (Networking) offers a free cloud management platform for unlimited GWN Routers.
GWN Manager offers premise-based software controller.
TR-069.
Power and Green Energy Efficiency:
USB Type-C power adapter included:
Input: 100~240V 50/60Hz.
Output: 5V/3A(15W).
Environmental:
Operation: 0°Cto 40°C, humidity: 10% to 90% RH (Non-condensing).
Storage: -20°C to 60°C, humidity: 10% to 90% RH (Non-condensing).
Dimensions:
Unit Dimensions: 140mm(L)*46mm(W)*90mm(H).
Entire Package Dimensions: 176.5mm(L)*170mm(W)*72mm(H).
Unit Weight:
Unit Weight: 185g.
Entire Package Weight: 465g.

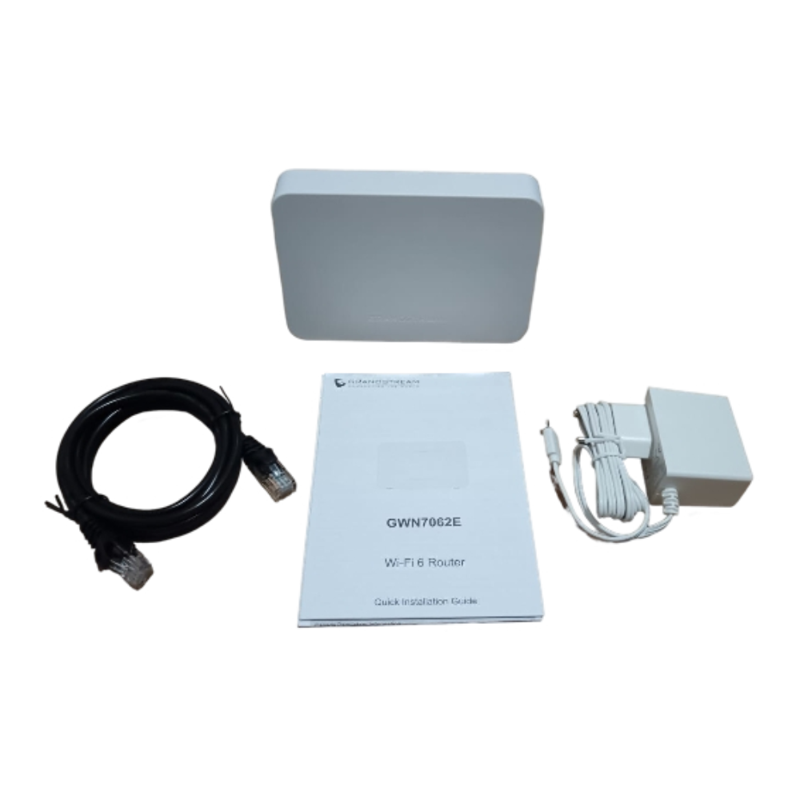

Package Content: GWN7062E router, Power Adapter, Ethernet Cable, Quick Installation Guide.
Compliance: FCC, CE, RCM, IC.
