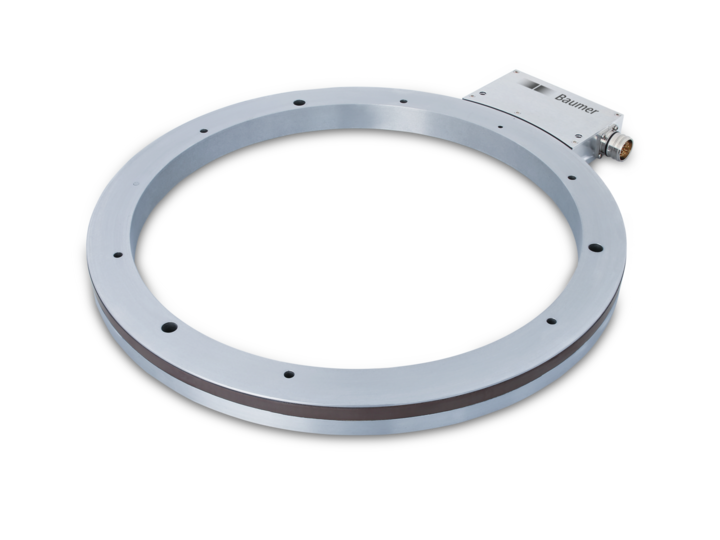

Encoders without bearings - incremental, HDmag MHGP 400
SKU: HDmag MHGP 400
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Sensor head with integrated FPGA signal processing / Magnetic sensing:
Sturdy and wear less.
Electronics is highly protected and completely enclosed.
Large tolerances: max. radial 2.2 mm, axial ± 3 mm.
Incredibly small dimensions.
Easy adaption and straightforward mounting.
Many mounting options.
FPGA signal processing incorporated inside the sensor head.
Delivery includes a magnetic rotor.
Buy currently uses Select Automation shop pricing and checkout.
Electrical ratings:
Interference immunity: EN 61000-6-2.
Emitted interference: EN 61000-6-3.
Approval: CE, UL approval / E217823.
Electrical ratings (square-wave):
Voltage supply: 4.5...30 VDC.
Consumption w/o load: ≤160 Ma.
Pulses per revolution: 256 … 524288.
Phase shift: 90 ° ±10°.
Duty cycle: 40…60 %.
Reference signal: Zero pulse, width 90°.
Sensing method: Magnetic.
Output frequency: ≤2 MHz.
Output signals: A+, B+, R+, A-, B-, R-.
Output stages: HTL, TTL/RS422.
Electrical ratings (SinCos):
Voltage supply: 4.5...30 VDC.
Consumption w/o load: ≤160 mA.
Sinewave cycles per revolution: 256 … 32768.
Phase shift: 90 ° ±5°.
Reference signal: Zero pulse, width 90°.
Sensing method: Magnetic.
Output signals: A+, B+, R+, A-, B-, R-.
Output stages: SinCos 1 Vpp.
Difference of SinCos amplitude: ≤20 mV.
Harmonics typ.: -40 dB.
DC offset: ≤20 mV.
Bandwidth: 400 kHz (-3 dB).
Mechanical design:
Sensor head: FPGA signal processing.
Size (flange): ø405.4 mm.
Shaft type: ø70...340 mm (through hollow shaft).
Axial tolerance: ±3 mm (wheel/head).
Radial tolerance: 0.1…2.2 mm (wheel/head).
Protection EN 60529: IP 67 (head), IP 68 (wheel).
Operating speed: ≤2000 rpm.
Material: Housing sensing head: aluminium alloy, Wheel: stainless steel (1.4104).
Operating temperature: -20...+85 °C.
Resistance: IEC 60068-2-6, Vibration 30 g, 55-2000 Hz, IEC 60068-2-27, Shock 300 g, 2 ms.
Accuracy of magnetic measure: ±75 ″.
Connection: Flange connector M23, 12-pin.
