Incremental Bearingless Encoders HDmag MIR 3000F
SKU: HDmag MIR 3000F
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

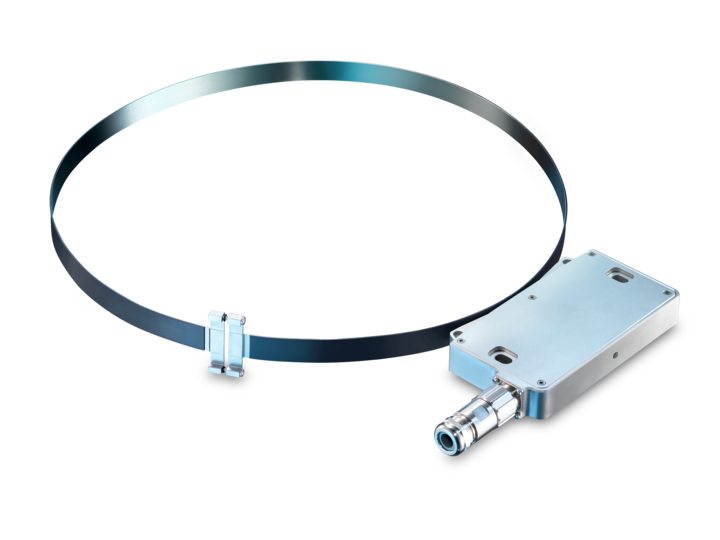

Sensor head with magnetic tape for shaft ø300...3185 mm:
Magnetically sensed incremental encoder that operates without bearings.
Flexible design with a broad range of shaft diameters.
Sine signals or square-wave signals (HTL/TTL).
Maximum pulses per revolution: 131072.
LED and the system OK output are used to indicate status.
Sturdy and wear less.
Completely enclosed electronics IP 67.
Large margins of tolerance for mounting.
Delivery includes a magnetic rotor.
Buy currently uses Select Automation shop pricing and checkout.
Electrical ratings:
Voltage supply: 4.75...30 VDC.
Consumption w/o load: ≤300 mA (24 VDC).
Initializing time: ≤ 1000 ms after power on.
Output signals: A+, B+, R+, A-, B-, R-.
Sensing method: Magnetic.
Status indicator: Colour-LED, system OK output.
Interference immunity: EN 61000-6-2.
Emitted interference: EN 61000-6-3.
Approval: CE, UL approval / E217823.
Electrical ratings (square-wave):
Pulses per revolution: 512 … 131072.
Phase shift: 90 ° ±2°.
Duty cycle: 45…55 %.
Reference signal: Zero pulse, width 90°.
Output frequency: ≤500 kHz (HTL), ≤2 MHz (TTL).
Output stages: HTL, TTL/RS422.
Mechanical design:
Dimensions (sensor head): 165 x 25 x 93 mm.
Shaft type: ø300...3185 mm (through hollow shaft).
Axial tolerance: ±5 mm (belt to head).
Radial tolerance: 1…3 mm (belt to head).
Protection EN 60529: IP 67.
Operating speed: ≤1850 rpm (ø300 mm), ≤150 rpm (ø1500 mm).
Material: Housing sensing head: aluminium alloy, Magnetic belt: stainless steel (1.4310).
Operating temperature: -40...+85 °C.
Resistance: IEC 60068-2-6, Vibration 30 g, 10-2000 Hz, IEC 60068-2-27, Shock 300 g, 6 ms.
Weight approx.: 730 g (head), 120 g (belt/m), 17 g (lock).
Connection: Flange connector M23, 12-pin.
