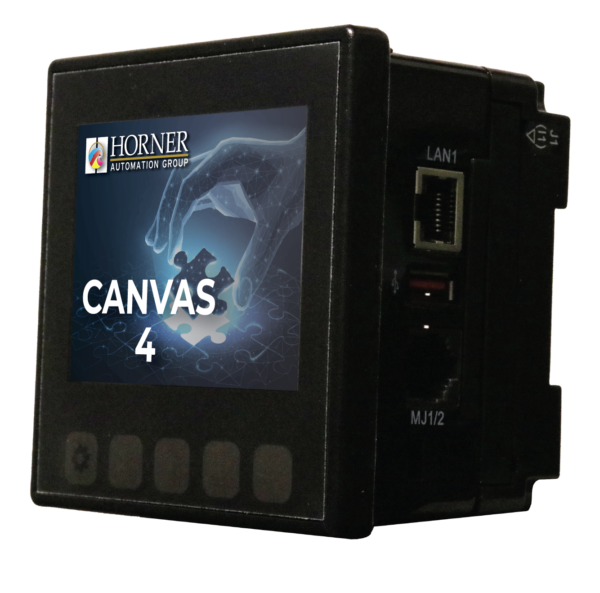

Canvas 4 Controller 3.5", no built in IO, With Display Heater
SKU: HE-CV-035C-00-22
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Created with a brand-new graphics engine and improved graphics from Cscape 10.
Dedicated logic and graphics cores in a multi-core SOM.
A 3.5" QVGA (320x240) display that is bright and has five physical function keys.
Up to 42 I/O points on board with 6 I/O configurations.
Ethernet, RS-232/485 and CAN interfaces, 2MB Logic Memory.
Data storage options include Micro SD or USB-A, with ¼ DIN cutout or DIN-Rail mountable.
Enhanced WebMI features, support for MQTT, and online programming.
WebMI+, MQTT, Enhanced IEC, and J1939 functionalities come standard on all Canvas variants.
Among the networking features are:
10/100 Ethernet port integrated in.
Integrated may port that may be used with DeviceNet Scanner, CANopen, CsCAN, or J1939.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display: 3.5” QVGA (320×240) colour touchscreen.
Processor: Multi-core System on Module (SOM) with dedicated logic and graphics cores.
Memory: 2MB Logic Memory.
I/O Configurations: Up to 42 I/O points onboard.
Digital Inputs: 12 DC.
Digital Outputs: 12 DC.
Analog Inputs: 2 – 14/16-bit (mA/V/Tc/mV/RTD).
Analog Outputs: 2 – 12-bit.
Networking:
10/100 Ethernet port.
RS-232/485 ports.
CAN port (supports CsCAN, CANopen, J1939, DeviceNet Scanner).
Storage: USB-A or Micro SD for data storage.
Mounting: ¼ DIN cutout or DIN-Rail mountable.
Additional Features:
Online Programming.
MQTT support.
Enhanced WebMI features.
