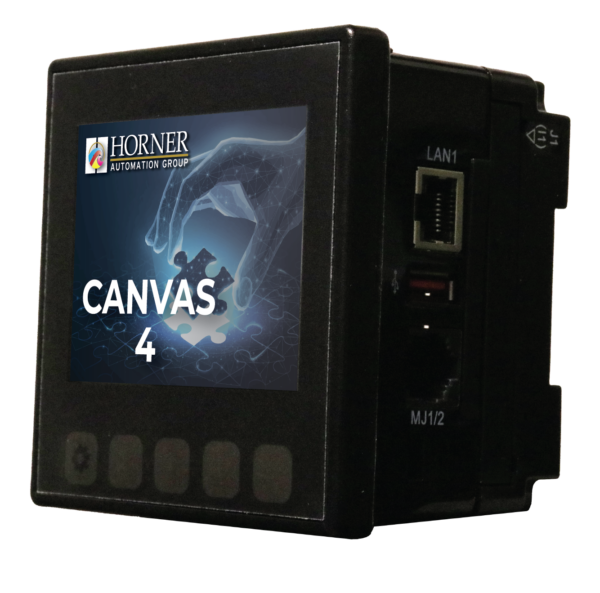

Canvas 4 Controller 3.5", 24 DC In, 16 DC Out, 2 Analog In (mA/V), With Display Heater
SKU: HE-CV-035C-04-22
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Created with a brand-new graphics engine and improved graphics from Cscape 10.
Dedicated logic and graphics cores in a multi-core SOM.
A 3.5" QVGA (320x240) display that is bright and has five physical function keys.
Up to 42 I/O points on board with 6 I/O configurations.
Ethernet, RS-232/485 and CAN interfaces, 2MB Logic Memory.
Data storage options include Micro SD or USB-A, with ¼ DIN cutout or DIN-Rail mountable.
Enhanced WebMI features, support for MQTT, and online programming.
WebMI+, MQTT, Enhanced IEC, and J1939 functionalities come standard on all Canvas variants.
Among the networking features are:
10/100 Ethernet port integrated in.
Integrated may port that may be used with DeviceNet Scanner, CANopen, CsCAN, or J1939.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display: 3.5” QVGA (320×240) colour touchscreen.
Function Keys: 5 physical function keys.
I/O Configurations: Up to 42 I/O points onboard.
Communication Ports:
Ethernet (10/100).
RS-232/485.
CAN port (supports CsCAN, CANopen, J1939, or DeviceNet Scanner).
Memory: 2MB Logic Memory.
Mounting Options: ¼ DIN cutout or DIN-Rail mountable.
Data Storage: USB-A or Micro SD.
Programming Support: Online Programming, MQTT support, and WebMI features.
Analog Inputs: 6 – 14/17-bit Analog In (mA/V/Tc/mV/RTD).
Analog Outputs: 4 – 12-bit Analog Out.
Digital Inputs/Outputs: 12 DC in, 12 DC Out.
