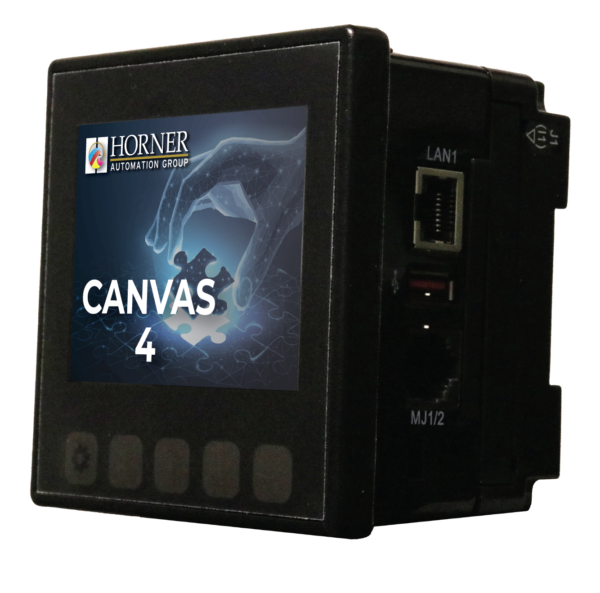

Canvas 4 Controller 3.5", 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out, With Display Heater and With screw type I/O terminals
SKU: HE-CV-035C-06-603
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
New graphics engine developed using the improved visuals of Cscape 10.
Dedicated logic and graphics cores in a multi-core SOM.
A 3.5" QVGA (320x240) display that is bright and has five physical function keys.
up to 42 I/O points on board with 6 I/O configurations.
Ethernet, RS-232/485 and CAN interfaces, 2MB Logic Memory.
Data storage options include Micro SD or USB-A, with ¼ DIN cutout or DIN-Rail mountable.
MQTT support, online programming, and enhanced WebMI are all included.
Among the networking features are:
(1) Ethernet port (10/100 built-in).
(1) An integrated CAN port that can be used with DeviceNet Scanner, CANopen, CsCAN, or J1939.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display: 3.5” QVGA (320×240) colour touchscreen.
Processor: Multi-core SOM with dedicated logic and graphics cores.
Memory: 2MB Logic Memory.
Mounting: ¼ DIN cutout or DIN-Rail mountable.
Power Supply: 10 - 30VDC; 10 - 24VDC (with heater option).
Operating Temperature: -10°C to +60°C; -40°C to +60°C (with heater option).
Storage Temperature: -20°C to +60°C.
Weight: 340g (without I/O).
Humidity: 5 to 95%, non-condensing.
Altitude: Up to 2000m.
Certifications: UL/CE.
I/O Specifications:
Digital Inputs: 12 DC in.
Digital Outputs: 12 DC out.
Analog Inputs: 6 – 14/17-bit Analog In (mA/V/Tc/mV/RTD).
Analog Outputs: 4 – 12-bit Analog Out.
Connectivity:
Ethernet: 10/100 Ethernet port.
Serial Ports: RS-232/485.
CAN Port: Supports CsCAN, CANopen, J1939, or DeviceNet Scanner.
USB: USB-A or Micro SD for data storage.
Features:
Graphics Engine: Built with Cscape 10 enhanced graphics.
Programming: Online Programming and MQTT support.
WebMI: Improved WebMI features included as standard.
Networking: Built-in 10/100 Ethernet port, Integrated CAN port.
Special Options: Thermistor support for Analog Inputs 1 & 2 (optional).
