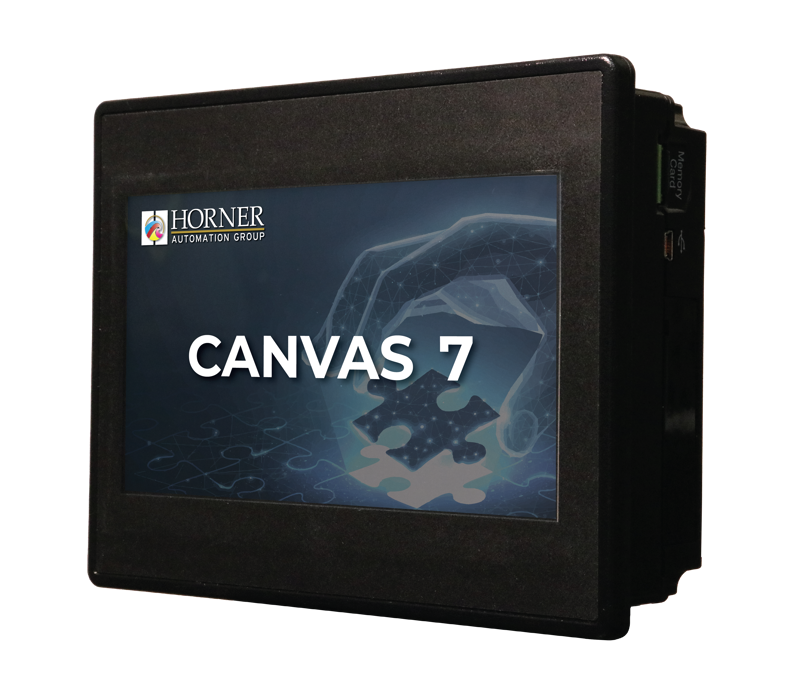

Canvas 7 Controller 7", 24 DC In, 16 DC Out, 2 Analog In (mA/V)
SKU: HE-CV-070C-04
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Created with a brand-new graphics engine and improved graphics from Cscape 10.
Dedicated logic and graphics cores in a multi-core SOM.
Seven-inch WVGA (800x480) screen with virtual function keys.
Up to 42 I/O points on board with 6 I/O configurations.
Ethernet, two megabytes of logic memory, three serial connections, and one CAN interface.
For data storage, use Micro SD or USB-A.
Enhanced WebMI features, support for MQTT, and online programming.
WebMI+, MQTT, Enhanced IEC, and J1939 functionalities come standard on all Canvas variants.
Among the networking characteristics are:
10/100 Ethernet port integrated in.
Integrated may port that may be used with DeviceNet Scanner, CANopen, CsCAN, or J1939.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display: 7” WVGA (800×480) colour touchscreen.
I/O Points: Up to 42 onboard.
Connectivity: Ethernet, 3 serial ports, 1 CAN port.
Memory: 2MB logic memory.
Data Storage: USB-A or Micro SD.
Programming Support: Online Programming, MQTT support, WebMI features.
Networking Features: Built-in 10/100 Ethernet port, Integrated CAN port (supports CsCAN, CANopen, J1939, DeviceNet).
Operating Temperature: -10°C to +60°C.
Storage Temperature: -20°C to +60°C.
Power Requirements: 10 - 30VDC, Maximum Current 1000mA.
Relative Humidity: 5 to 95%, non-condensing.
Weight: 1785 grams (1.785 kg).
