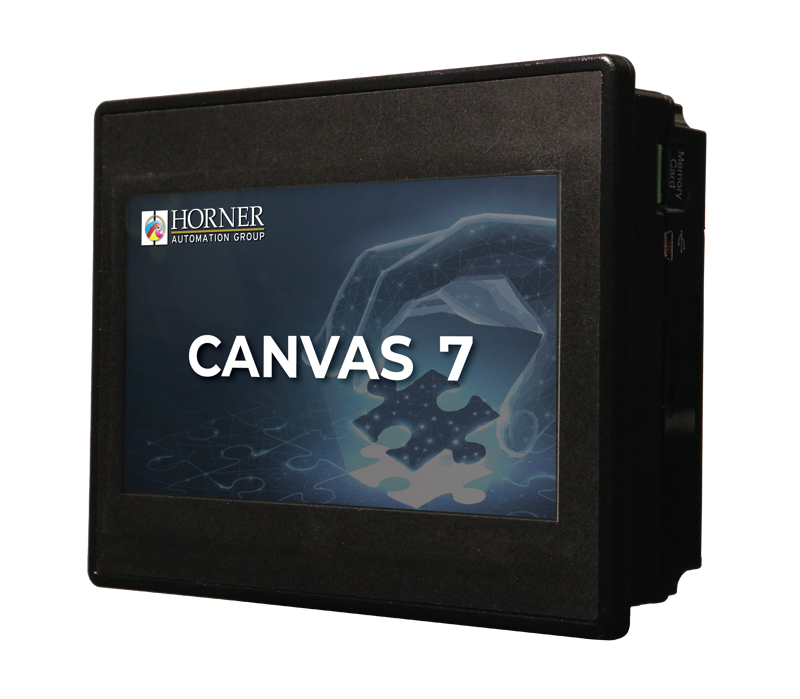

      Canvas 7 Controller 7", 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out, With screw type I/O terminals

      SKU: HE-CV-070C-06-602

      Out of stock

      Availability: Out of Stock

      Short Description
      Description: created with a brand-new graphics engine and improved graphics from Cscape 10. Dedicated logic and graphics cores in a multi-core SOM. Seven-inch WVGA (800x480) screen with virtual function keys. Up to 42 I/O points on board with 6 I/O configurations. Ethernet, two megabytes of logic memory, three serial connections, and one CAN interface. For data storage, use Micro SD or USB-A. Enhanced WebMI features, support for MQTT, and online programming. WebMI+, MQTT, Enhanced IEC, and J1939 functionalities come standard on all Canvas variants. Among the networking features are: (1) Ethernet port (10/100 built-in). (1) An integrated CAN port that can be used with DeviceNet Scanner, CANopen, CsCAN, or J1939.
      HE-CV-070C-06-602
      Alternative image 1
      General Specifications: Required Power (Inrush): 25A for < 1ms at 24VDC. Primary Power Range: 10 - 30VDC; 10-24VDC (with heater). Maximum Current: 1100mA, Class 2. Relative Humidity: 5 to 95%, non-condensing. Clock Accuracy: ± 20 ppm maximum at 25°C (± 1 min/month). Real Time Clock: Battery Backed, Lithium Coin. Operating Temperature: -10°C to +60°C; -40°C to +60°C (with heater). Storage Temperature: -20°C to +60°C. Weight: 1.59 lbs (721.2g). Altitude: Up to 2000m. Pollution Degree: Degree 2 Rating. Certification: UL/CE (North America or Europe). Enclosure Type: 1, 3R, 4, 4X, 12, 12K & 13. Backlight Specifications: Typical Power Backlight at 100%: 516mA at 10VDC (5.16W); 233mA at 24VDC (5.592W). Power Backlight at 50%: 176mA at 24VDC (4.22W). Connectivity: Ethernet: LAN2 Ethernet Port. Serial Communication: Available. CAN Communications: Available. USB: USB-A or Micro SD for data storage. I/O Specifications: Digital DC Inputs: 12. Digital DC Outputs: 12. Analog Inputs: 6 (mA/V/Tc/mV/RTD). Analog Outputs: 4. Environmental Specifications: Operating Temperature: -10°C to +60°C; -40°C to +60°C (with heater). Storage Temperature: -20°C to +60°C. Relative Humidity: 5 to 95%, non-condensing.
