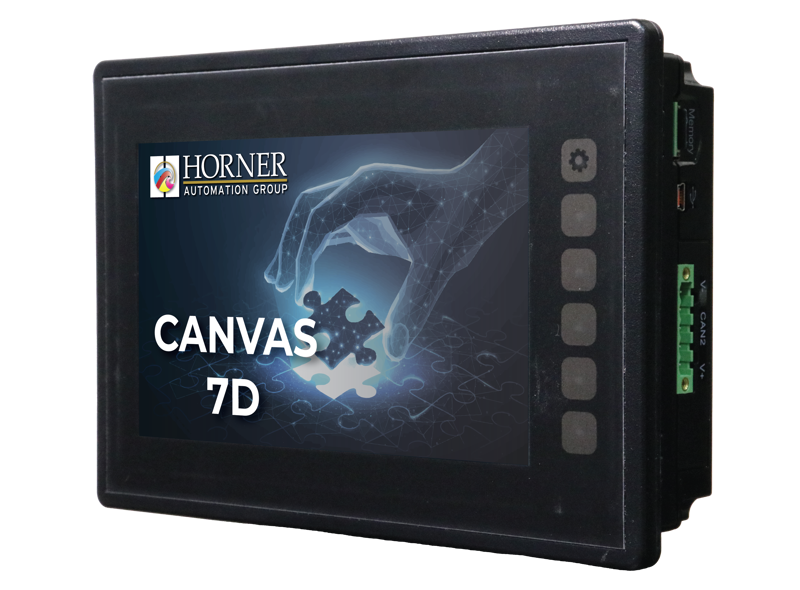

Canvas 7D Controller 7", no built in IO, dual Ethernet and dual CAN, With Display Heater
SKU: HE-CV-070D-00-22
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Created with a brand-new graphics engine and improved graphics from Cscape 10.
Dedicated logic and graphics cores in a multi-core SOM.
Physical function keys and a 7" WVGA (800x480) display.
Up to 42 I/O points on board with 6 I/O configurations.
Two MB of logic memory, three serial ports, two CAN ports, and two Ethernet connections.
Like the XL7 Prime cutout, DIN-rail mountable.
Mini-USB with compatibility for Micro SD and USB A for programming.
Enhanced WebMI features, support for MQTT, and online programming.
WebMI+, MQTT, Enhanced IEC, and J1939 functionalities come standard on all Canvas variants.
Among the networking features are:
Two Ethernet ports (10/100 integrated).
(2) Integrated CAN ports that can concurrently support J1939, DeviceNet Scanner, CANopen, and CsCAN.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Required Power (Inrush): 25A for < 1ms at 24VDC.
Primary Power Range: 10 - 30VDC; 10-24VDC (with heater).
Maximum Current: 1100mA, Class 2.
Relative Humidity: 5 to 95%, non-condensing.
Clock Accuracy: ± 20 ppm maximum at 25°C (± 1 min/month).
Real Time Clock: Battery Backed, Lithium Coin.
Operating Temperature: -10°C to +60°C; -40°C to +60°C (with heater).
Storage Temperature: -20°C to +60°C.
Weight: 721.2g.
Altitude: Up to 2000m.
Pollution Degree: Degree 2 Rating.
Certification: UL/CE (North America or Europe).
Enclosure Type: 1, 3R, 4, 4X, 12, 12K & 13.
Backlight Specifications:
Typical Power Backlight at 100%: 385mA at 10V (3.85W); 176mA at 24VDC (4.224W).
Power Backlight at 50%: 119mA at 24VDC (2.86W).
Connectivity:
Ethernet: LAN2 Ethernet Port.
Serial Communication: Available.
CAN Communications: Available.
USB: USB-A or Micro SD for data storage.
I/O Specifications:
Digital DC Inputs: 24.
Digital DC Outputs: 16.
Analog Inputs: 2 (12-bit).
Environmental Specifications:
Operating Temperature: -10°C to +60°C; -40°C to +60°C (with heater).
Storage Temperature: -20°C to +60°C.
Relative Humidity: 5 to 95%, non-condensing.
