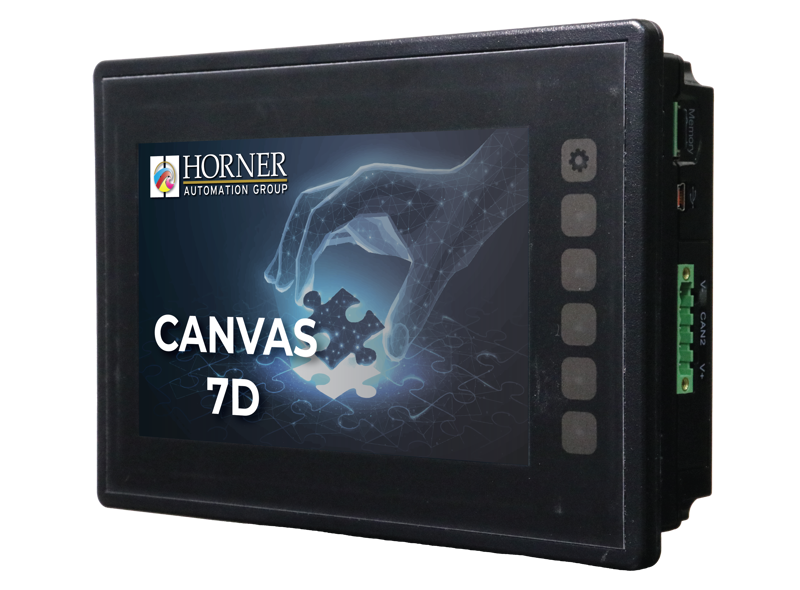

Canvas 7D Controller 7", no built in IO, dual Ethernet and dual CAN
SKU: HE-CV-070D-00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Created with a brand-new graphics engine and improved graphics from Cscape 10.
Dedicated logic and graphics cores in a multi-core SOM.
Physical function keys and a 7" WVGA (800x480) display.
Up to 42 I/O points on board with 6 I/O configurations.
Two MB of logic memory, three serial ports, two CAN ports, and two Ethernet connections.
Like the XL7 Prime cutout, DIN-rail mountable.
Mini-USB with compatibility for Micro SD and USB A for programming.
Enhanced WebMI features, support for MQTT, and online programming.
WebMI+, MQTT, Enhanced IEC, and J1939 functionalities come standard on all Canvas variants.
Among the networking features are:
Two Ethernet ports (10/100 integrated).
(2) Integrated CAN ports that can concurrently support J1939, DeviceNet Scanner, CANopen, and CsCAN.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display: 7” WVGA (800×480) colour touchscreen.
I/O Points: Up to 42 onboard.
Connectivity: Dual Ethernet, 3 serial ports, dual CAN ports.
Memory: 2MB logic memory.
Data Storage: USB-A or Micro SD.
Programming Support: Online Programming, MQTT support, WebMI features.
Networking Features: Built-in 10/100 Ethernet ports, Integrated CAN ports (supports CsCAN, CANopen, J1939, DeviceNet).
Operating Temperature: -10°C to +60°C.
Storage Temperature: -20°C to +60°C.
Power Requirements: 10 - 30VDC, Maximum Current 1100mA.
Relative Humidity: 5 to 95%, non-condensing.
Weight: 721.2 grams (0.721 kg).
