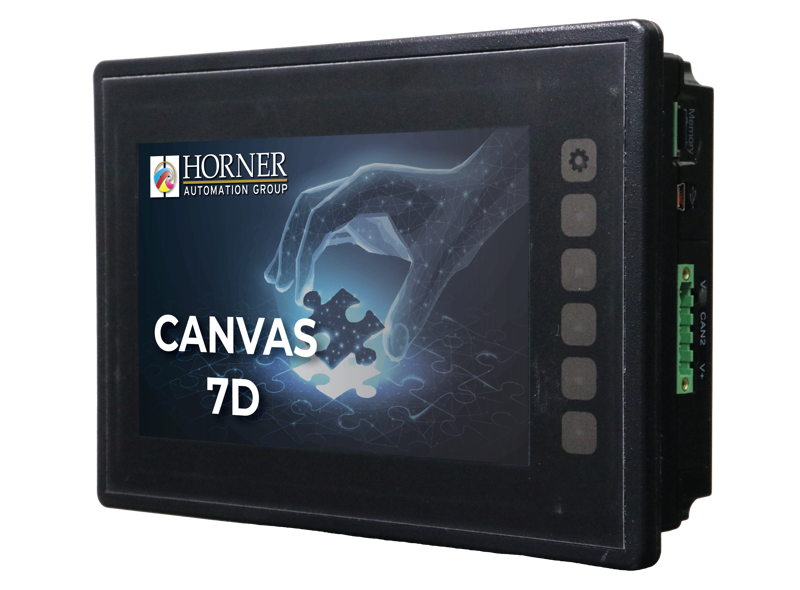

Canvas 7D Controller 7", 24 DC In, 16 DC Out, 2 Analog In (mA/V), dual Ethernet and dual CAN
SKU: HE-CV-070D-04
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Created with a brand-new graphics engine and improved graphics from Cscape 10.
Dedicated logic and graphics cores in a multi-core SOM.
Physical function keys and a 7" WVGA (800x480) display.
Up to 42 I/O points on board with 6 I/O configurations.
Two MB of logic memory, three serial ports, two CAN ports, and two Ethernet connections.
Like the XL7 Prime cutout, DIN-rail mountable.
Mini-USB with compatibility for Micro SD and USB A for programming.
Enhanced WebMI features, support for MQTT, and online programming.
WebMI+, MQTT, Enhanced IEC, and J1939 functionalities come standard on all Canvas variants.
Among the networking features are:
Two Ethernet ports (10/100 integrated).
(2) Integrated CAN ports that can concurrently support J1939, DeviceNet Scanner, CANopen, and CsCAN.
Buy currently uses Select Automation shop pricing and checkout.
General Specifications:
Display: 7” WVGA (800×480) touchscreen.
Backlight: LED.
Weight: 1.59 lbs (721.2g).
Operating Temperature: -10°C to +60°C.
Storage Temperature: -20°C to +60°C.
Relative Humidity: 5 to 95%, non-condensing.
Altitude: Up to 2000m.
Pollution Degree: Degree 2.
Enclosure Type: 1, 3R, 4, 4X, 12, 12K & 13.
Certification: UL/CE.
Power Requirements:
Primary Power Range: 10 - 30VDC; 10-24VDC (with heater option).
Maximum Current: 1100mA, Class 2.
Inrush Current: 25A for < 1ms @ 24VDC.
Heater Option: Adds 250mA (24VDC).
Connectivity:
Ethernet Ports: Dual Ethernet.
Serial Ports: 3 serial ports.
CAN Ports: Dual CAN ports.
I/O Specifications:
Digital Inputs: 24 DC In.
Digital Outputs: 16 DC Out.
Analog Inputs: 2 – 12-bit Analog In.
Analog Outputs: Optional kits available (e.g., HE-XDAC 2 channel, HE-XDAC107 4 channel).
Additional Features:
Real Time Clock: Battery-backed, Lithium Coin (CR2032).
Clock Accuracy: ± 20 ppm maximum at 25°C (± 1 min/month).
Graphics Engine: Built with Cscape 10 enhanced graphics.
Memory: 2MB Logic Memory.
Mounting: DIN-Rail mountable, same cutout as XL7 Prime.
