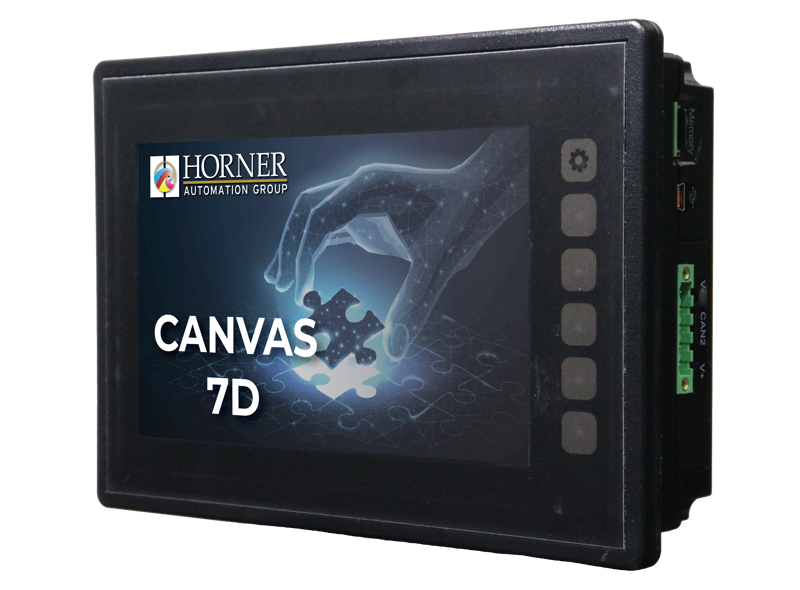

Canvas 7D Controller 7", 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out, dual Ethernet and dual CAN
SKU: HE-CV-070D-06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Created with a brand-new graphics engine and improved graphics from Cscape 10.
Dedicated logic and graphics cores in a multi-core SOM.
Physical function keys and a 7" WVGA (800x480) display.
Up to 42 I/O points on board with 6 I/O configurations.
Two MB of logic memory, three serial ports, two CAN ports, and two Ethernet connections.
Like the XL7 Prime cutout, DIN-rail mountable.
Mini-USB with compatibility for Micro SD and USB A for programming.
Enhanced WebMI features, support for MQTT, and online programming.
WebMI+, MQTT, Enhanced IEC, and J1939 functionalities come standard on all Canvas variants.
Among the networking features are:
Two Ethernet ports (10/100 integrated).
(2) Integrated CAN ports that can concurrently support J1939, DeviceNet Scanner, CANopen, and CsCAN.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display: 7” WVGA (800×480) with physical function keys.
Processor: Multi-core System on Module (SOM) with dedicated logic and graphics cores.
Memory: 2MB Logic Memory.
I/O Configurations: Up to 42 I/O points onboard.
Networking:
Dual Ethernet ports (10/100).
Dual CAN ports supporting CsCAN, CANopen, J1939, or DeviceNet Scanner.
Serial Ports: 3 serial ports.
USB Support:
Mini-USB for programming.
USB A and Micro SD support.
Mounting: DIN-Rail mountable, same cutout as XL7 Prime.
Programming:
Online Programming and MQTT support.
Enhanced WebMI features.
Analog Inputs/Outputs:
12 DC In.
12 DC Out.
6 – 14/17-bit Analog In (mA/V/Tc/mV/RTD).
4 – 12-bit Analog Out.
Power Requirements: 10 - 30VDC; 10- 24VDC (with heater option).
Environmental:
Operating temperature range: -10°C to +60°C.
Storage temperature range: -20°C to +60°C.
Relative humidity: 5 to 95% non-condensing.
Certifications: UL/CE certified for North America and Europe.
Additional Features:
Built-in logic engine, operator interface, networking, and I/O.
WebMI+, MQTT, Enhanced IEC, and J1939 features included as standard.
