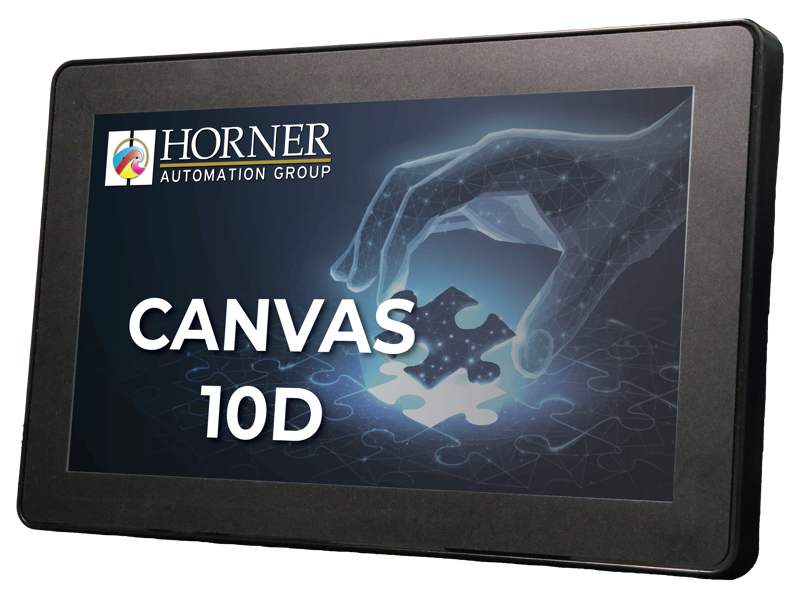

Canvas 10D Controller 10.1", 12 DC In, 12 DC Out, 2 Analog In, (mA/V), dual Ethernet and dual CAN
SKU: HE-CV-101D-03
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
With a 0.02mS/K logic scan, the Canvas 10D Logic engine has 2MB of application memory.
It is possible to make logic modifications in real time without having to enter stop mode by using the Online Programming Mode.
Features of the operator interface include:
Created with a brand-new graphics engine and improved graphics from Cscape 10.
Dedicated logic and graphics cores in a multi-core SOM.
Virtual function keys and 10.1" WSVGA (1024 x 600) display.
Up to 42 I/O points on board with 6 I/O configurations.
Two MB of logic memory, three serial ports, two CAN ports, and two Ethernet connections.
Same cutout as XL6/W Prime and X10, DIN-Rail mountable.
Micro SD, USB A, and USB Type C are supported.
Enhanced WebMI features, support for MQTT, and online programming.
WebMI+, MQTT, Enhanced IEC, and J1939 functionalities come standard on all Canvas variants.
Among the networking features are:
Two Ethernet ports (10/100 integrated).
(2) Integrated CAN ports that can concurrently support J1939, DeviceNet Scanner, CANopen, and CsCAN.
Every Canvas 10D model has a microSD slot that can hold at least 32GB of memory.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model Number: HE-CV-101D-03.
Primary Voltage Range: 10 - 30VDC.
Maximum Current: 1100mA, Class 2.
Clock Accuracy: ± 20 ppm maximum at 25°C (±1 min/month).
Real Time Clock: Battery Backed, Lithium Coin.
Operating Temperature: -10°C to +60°C.
Storage Temperature: -20°C to +60°C.
Relative Humidity: 5 to 95%, non-condensing.
Weight: 2.7 lbs. (1.22 kg).
Altitude: Up to 2000m.
Rated Pollution Degree: Degree 2 Rating.
Certifications: UL/CE (North America or Europe).
Enclosure Type: 1, 3R, 4, 4X, 12, 12K & 13.
Display and Interface:
Display: 10.1” WSVGA (1024×600) LED Colour.
Brightness: 300 cd/m² (nits typical).
Touchscreen: Yes.
I/O Specifications:
Digital Inputs: 12 DC In.
Digital Outputs: 12 DC Out.
Analog Inputs: 2 (12-bit, mA/V).
Built-in I/O Points: 22-44.
SmartStix, SmartRail, SmartBlock I/O Support: Yes, CsCAN and Ethernet.
Digital Inputs/Outputs (max): 2048 / 2048.
Analog Inputs/Outputs (max): 512 / 512.
Connectivity:
Ethernet Ports: 2 (10/100).
Serial Ports: 3.
CAN Ports: 2 (supporting CsCAN and either CANopen, J1939, or DeviceNet Scanner simultaneously).
USB Ports: Type C for programming, USB A and Micro SD support.
Power Consumption:
Typical Power Backlight at 100%: 898mA at 10V (8.98W); 431mA at 24VDC (10.344W).
Power Backlight at 50%: 276mA at 24VDC (6.62W).
Power Backlight Off: 266mA at 24VDC (6.38W).
Additional Features:
Logic Memory: 2 MB.
Logic Scan Rate: 0.02 mS/K.
Online Programming Mode: Supported.
MQTT Support: Yes.
WebMI+: Included.
Enhanced IEC and J1939 Features: Included.
