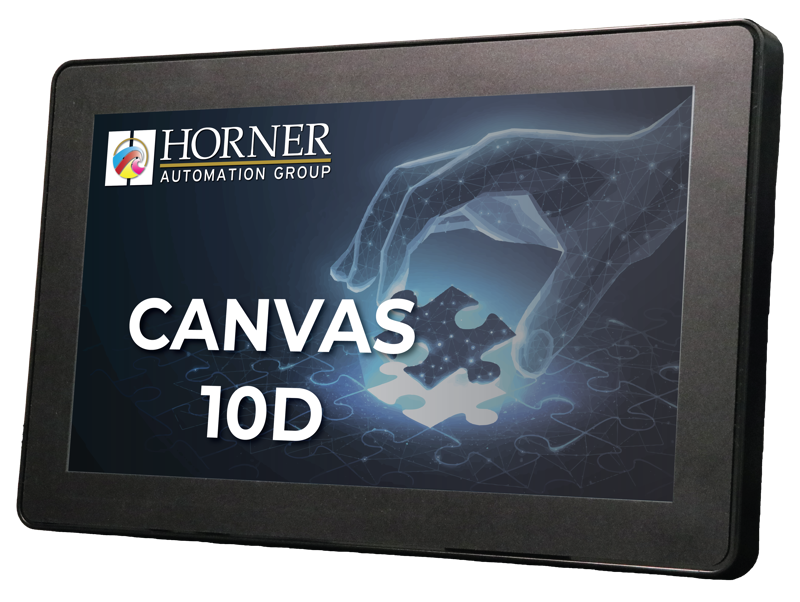

      Canvas 10D Controller 10.1", 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out, dual Ethernet and dual CAN, With screw type I/O terminals

      SKU: HE-CV-101D-06-602

      Out of stock

      Availability: Out of Stock

      Short Description
      Description: With a 0.02mS/K logic scan, the Canvas 10D Logic engine has 2MB of application memory. It is possible to make logic modifications in real time without having to enter stop mode by using the Online Programming Mode. Features of the operator interface include: Created with a brand-new graphics engine and improved graphics from Cscape 10. Dedicated logic and graphics cores in a multi-core SOM. Virtual function keys and 10.1" WSVGA (1024 x 600) display. Up to 42 I/O points on board with 6 I/O configurations. Two MB of logic memory, three serial ports, two CAN ports, and two Ethernet connections. Same cutout as XL6/W Prime and X10, DIN-Rail mountable. Micro SD, USB A, and USB Type C are supported. Enhanced WebMI features, support for MQTT, and online programming. WebMI+, MQTT, Enhanced IEC, and J1939 functionalities come standard on all Canvas variants. Among the networking features are: Two Ethernet ports (10/100 integrated). (2) Integrated CAN ports that can concurrently support J1939, DeviceNet Scanner, CANopen, and CsCAN. Every Canvas 10D model has a microSD slot that can hold at least 32GB of memory.
      HE-CV-101D-06-602
      Alternative image 1
      Controller Specifications: Ladder Logic Memory: 2 MB. Logic Scan Rate: 0.02 mS/K. Removable Memory: microSD. Local Comment Storage: Yes. Floating Point Support: Yes. Autotune PID Capable: Yes. Operator Interface: Display: 10.1” WSVGA (1024×600) LED Colour. Brightness: 300 cd/m² (nits) typical. Touchscreen: Yes. I/O Specifications: Built-in I/O Points: 22-44. Digital Inputs / Outputs, max: 2048 / 2048. Analog Inputs / Outputs, max: 512 / 512. General Purpose Registers (words): 50000. General Purpose Internal Coils (bits): 16384 (16384 retentive). Networking: Ethernet Ports: 2 built-in 10/100 Ethernet ports. CAN Ports: 2 integrated CAN ports supporting CsCAN and either CANopen, J1939, or DeviceNet Scanner simultaneously. Additional Features: Online Programming Mode: Supported. MQTT Support: Yes. WebMI+ Support: Yes. Enhanced IEC and J1939 Features: Included as standard. Physical Specifications: Mounting: DIN-Rail mountable. Weight: 2.7 lbs (approximately 1.22 kg). Operating Temperature: -10°C to +60°C. Storage Temperature: -20°C to +60°C. Relative Humidity: 5 to 95%, non-condensing. Altitude: Up to 2000m. Certifications: UL/CE.
