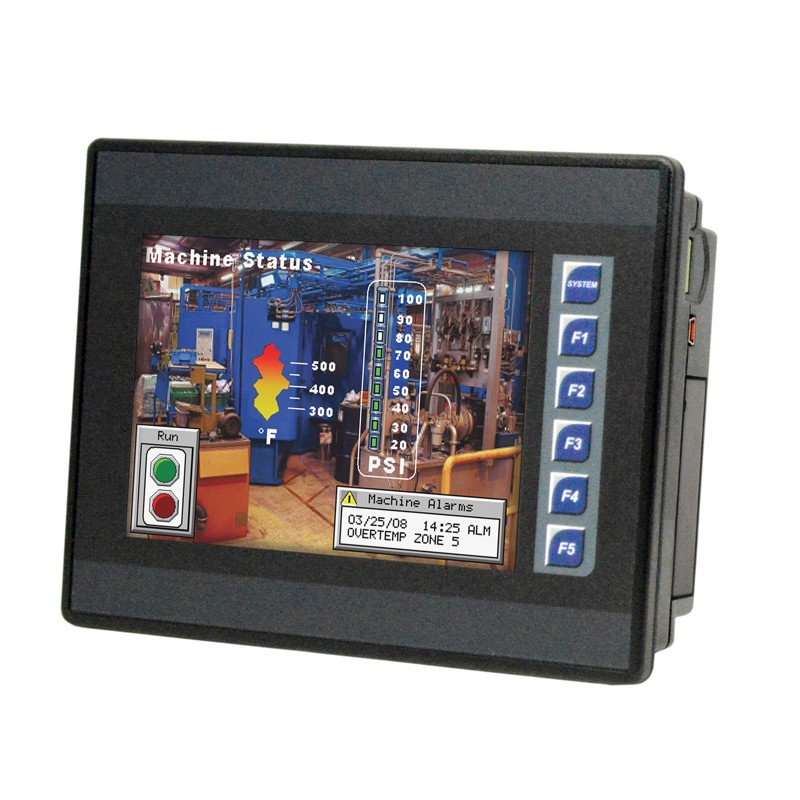

EXL6 Controller 5.7", 12 DC In/Out, 6 – 14/17-bit Analog In, WebMI License Unlimited pre-loaded
SKU: HE-EXL1E6-441
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
WebMI License Unlimited pre-loaded.
The EXL6 logic engine has a 0.04 mS/K logic scan speed and 1MB of application memory.
It is possible to make logic modifications in real time without having to enter stop mode by using the Online Programming Mode.
Buy currently uses Select Automation shop pricing and checkout.
Features of the operator interface include:
640x480 colour TFT LCD graphics display including a resistive touchscreen with great resolution.
A system key, four function keys, and the mini-B 5pin USB 2.0 On-the-Go port can be programmed.
Using USB FLASH drives, files can be exchanged over the USB 2.0 Host port (A).
ASCII In/Out, PLC/Drive downloading protocols, and RTU/Modbus Master/Slave are supported by one (1) RS-485 port and two (2) RS-232 ports.
Features of the EXL6 networking include:
Integrated 10/100 Ethernet connector CsCAN port integration.
Every unit has a microSD slot that can hold at least 32GB of memory.
