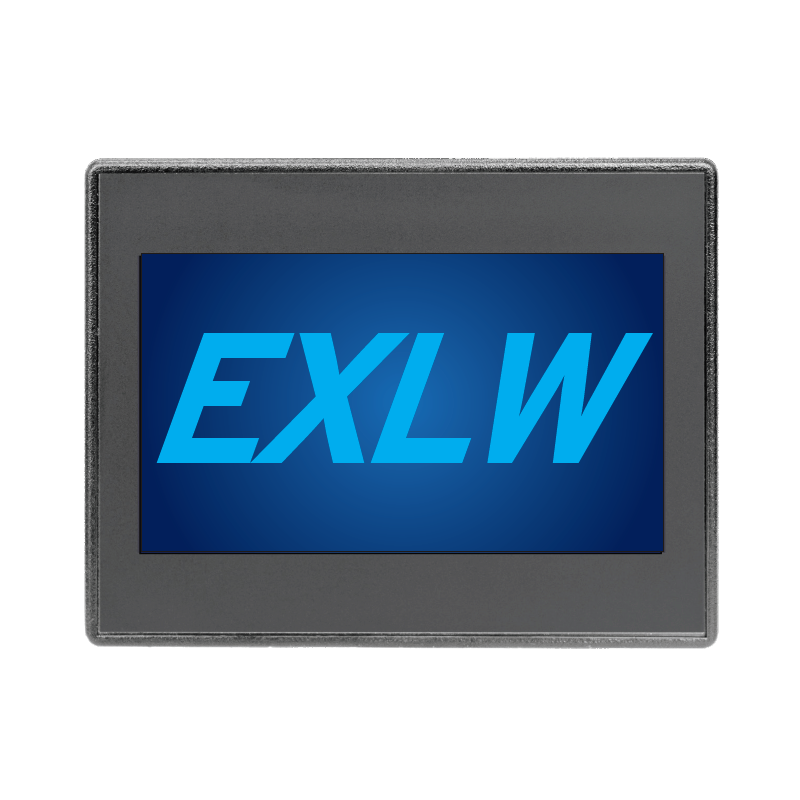

EXLW Controller 7", 12 DC In, 6 Relay Out, 4 Analog In, (mA/V), With CAN Open
SKU: HE-EXLWE2-200
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description of EXLW Series:
All units feature a built-in logic engine, operator interface, networking, and I/O.
Logic engine features 1MB of application memory with a 0.04 mS/K logic scan.
Online Programming Mode (making logic changes on the fly without going thru stop mode) is supported.
Operator Interface features include:
800×480 LCD TFT colour graphics display with a high-resolution resistive touchscreen.
USB 2.0 On-the-Go port (mini-B 5pin) is available for programming.
USB 2.0 Host port (A) is available for exchanging files with USB FLASH drives.
Two (2) RS-232 and one (1) RS-485 port support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols.
Buy currently uses Select Automation shop pricing and checkout.
Networking features include:
Built-in 10/100 Ethernet port.
Integrated CsCAN port.
All units feature a microSD slot, supporting at least 32GB.
EXLW Series products can be used for:
Building Automation: Improve occupant comfort, Economical operation systems, Reduce energy consumption.
Material Handling: Minimize HMI inefficiencies, Track/log/catalogue data, Increase overall productivity.
Oil and Gas: Maximize capacity utilization, rationalize assets, Maintain emission standards.
Renewable Energy: Data logging, remote access, Sunlight and UV protection, Durable, robust controllers.
Water/Wastewater: Operate chlorination systems, Station pump control, Remote water well controls.
