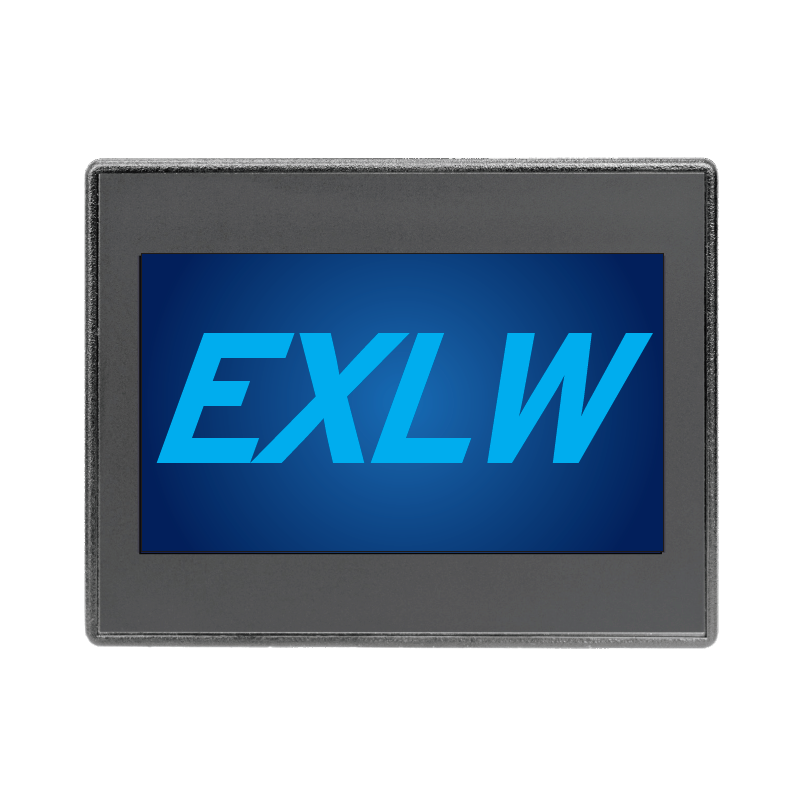

EXLW Controller 7", 12 DC In, 6 Relay Out, 4 Analog In, (mA/V)

Description: EXLW 7” Touch Series OCS with DC/Relay I/O. Twelve (12) Digital inputs compatible with 12V/24VDC – four (4) inputs can be used for 10kHz – High Speed Counting. Six (6) Relay Outputs – up to 5A continuous current. Four (4) 12-bit Analog inputs selectable between 0-10V and 4-20mA. All units feature a built-in logic engine, operator interface, networking, and I/O Logic engine features 1MB of application memory with a 0.04 mS/K logic scan. Online Programming Mode (making logic changes on the fly without going thru stop mode) is supported. Operator Interface features include: 800×480 LCD TFT colour graphics display with a high-resolution resistive touchscreen. USB 2.0 On-the-Go port (mini-B 5pin) is available for programming. USB 2.0 Host port (A) is available for exchanging files with USB FLASH drives. Two (2) RS-232 and one (1) RS-485 port support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols.
