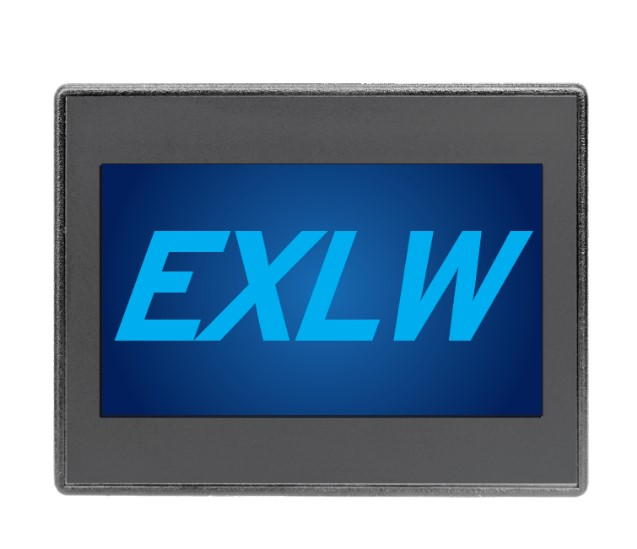

EXLW Controller 7", 12 DC In, 12 DC Out, 2 Analog In, (mA/V), With SAE J1939
SKU: HE-EXLWE3-44
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
With a 0.04 mS/K logic scan, the EXLW Logic engine has 1MB of application memory.
It is possible to make logic modifications in an instant without having to enter stop mode by using the Online Programming Mode.
Buy currently uses Select Automation shop pricing and checkout.
Operator Interface features include:
Featuring a 800x480 LCD TFT colour graphics display and a resistive touchscreen with great quality.
The mini-B 5pin USB 2.0 On-the-Go port can be programmed.
Using USB FLASH drives, files can be exchanged over the USB 2.0 Host port (A).
ASCII In/Out, PLC/Drive downloading protocols, and RTU/Modbus Master/Slave are supported by one (1) RS-485 port and two (2) RS-232 ports.
Networking features include:
10/100 Ethernet port integrated in.
Integrated port for CsCAN.
Every EXLW device has a microSD slot that can hold up to 32GB of memory.
