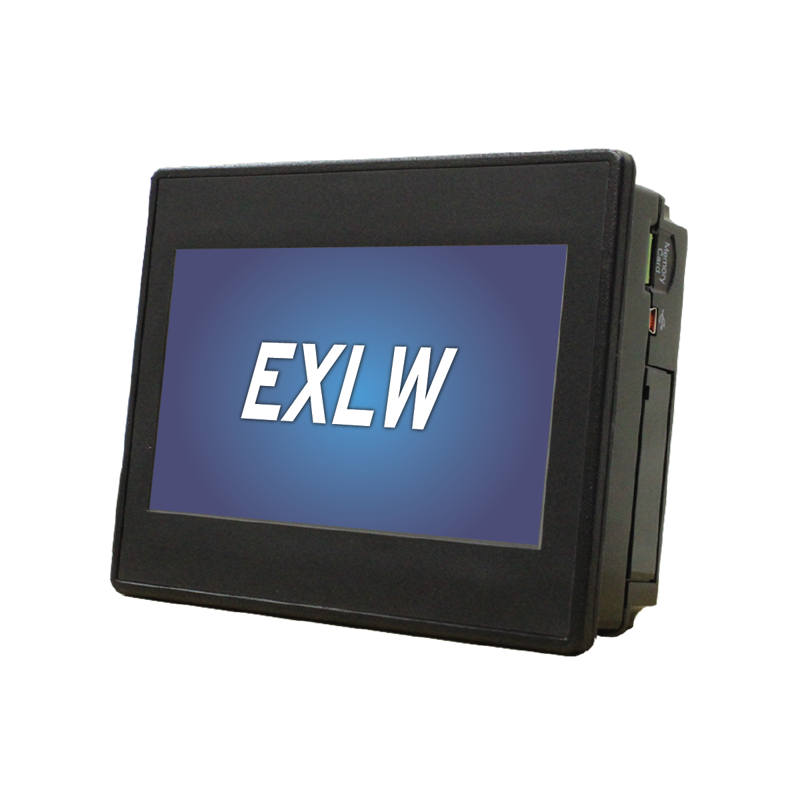

EXLW Controller 7", 12 DC In, 12 DC Out, 2 Analog In (mA/V/Tc/mV/RTD), 2 Analog Out, with MQTT License preloaded
SKU: HE-EXLWE5-445
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
MQTT License is pre-loaded.
With a 0.04 mS/K logic scan, the EXLW Logic engine has 1MB of application memory.
It is possible to make logic modifications in real time without having to enter stop mode by using the Online Programming Mode.
Buy currently uses Select Automation shop pricing and checkout.
Features of the operator interface include:
Featuring a 800x480 LCD TFT colour graphics display and a resistive touchscreen with great quality.
The mini-B 5pin USB 2.0 On-the-Go port can be programmed.
Using USB FLASH drives, files can be exchanged over the USB 2.0 Host port (A).
ASCII In/Out, PLC/Drive downloading protocols, and RTU/Modbus Master/Slave are supported by one (1) RS-485 port and two (2) RS-232 ports.
Among the networking characteristics are:
Integrated 10/100 Ethernet connector CsCAN port integration.
Every EXLW device has a microSD slot that can hold up to 32GB of memory.
