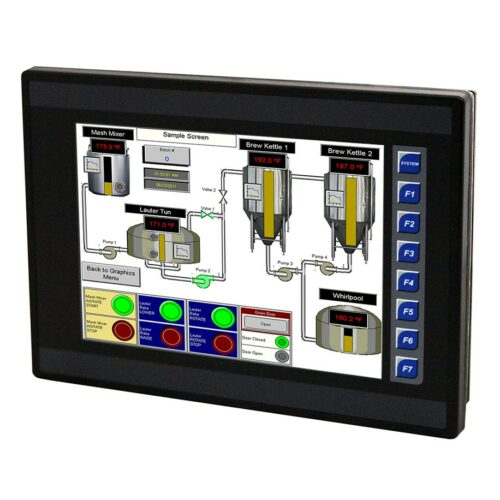

EXL10 Controller 10.4", 24 DC In, 16 DC Out, 2 Analog In (mA/V), dual Ethernet and dual CAN, with Enhanced IEC License preloaded
SKU: HE-EXV1E4-442
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Enhanced IEC License pre-loaded.
Logic engine has a 0.04 mS/K logic scan and 1MB of application memory.
It is possible to make logic modifications in real time without having to enter stop mode by using the Online Programming Mode.
Buy currently uses Select Automation shop pricing and checkout.
Features of the operator interface include:
640x480 colour TFT LCD graphics display including a resistive touchscreen with great resolution.
A system key and seven function keys.
The mini-B 5pin USB 2.0 On-the-Go port can be programmed.
Using USB FLASH drives, files can be exchanged over the USB 2.0 Host port (A). ASCII In/Out, PLC/Drive downloading protocols, and RTU/Modbus Master/Slave are supported on two (2) RS-232/485 ports.
Among the networking characteristics are:
Two Ethernet ports (10/100 integrated).
(2) Integrated CAN ports that can concurrently support J1939, DeviceNet Scanner, CANopen, and CsCAN.
Every unit has a microSD slot that can hold at least 32GB of memory.
