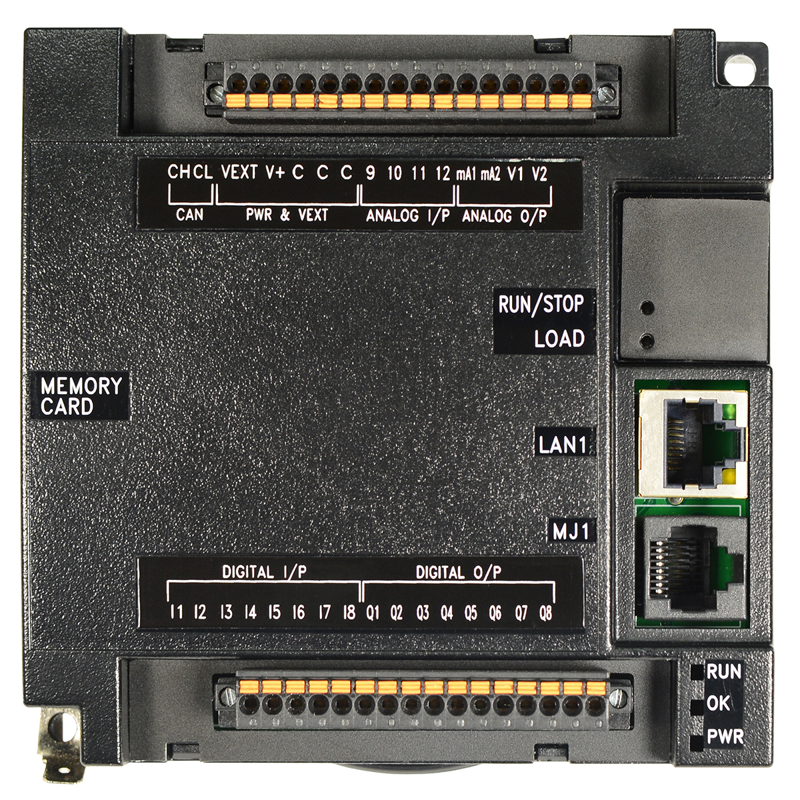

RCC Logic controller without display. 8 digital DC inputs, 8 digital outputs,
SKU: HE-RCC8842-75
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The RCC8842 is an RCC controller that supports 12V and 24VDC and has eight (8) digital inputs.
There are eight DC outputs.
5A per point; two (2) 12-bit analogue outputs and four (4) 12-bit analogue inputs with a range of 0 to 20 mA.
With its eight digital DC inputs, eight digital outputs, four analogue inputs, and two analogue outputs, this device offers users excellent input/output choices for a variety of Process and Discrete Manufacturing uses.
offers enhanced connection by default supporting both 10/100 Ethernet and CAN.
With CAN included, the RCC can use Horner's CsCAN to support hundreds of remote I/O points.
Buy currently uses Select Automation shop pricing and checkout.
Controller:
Protocols: CsCAN, Ethernet
Ethernet Connector: RJ45, Auto MDIX
Serial Port: 2 (1xRS232, 1×2-wire RS485)
Program Memory Size: 128 KB
Floating Point Support: Yes
Autotune PID Capable: Yes
I/O:
Built-in I/O Points: 22
Digital DC Inputs per Module: 8
DC Digital Input Voltage Range: 12 VDC / 24 VDC
Digital DC Outputs per Module: 8
Digital DC Output – Max Output Supply Voltage: 30 VDC
Digital DC Output – Max Inrush Current: 500mA per channel
Analog Input Channels: 4 (0-20 mA)
Analog Outputs per Module: 2 (0-20 mA)
Analog Inputs/Outputs, Max: 512 / 512
%AQ Full Scale: 0 – 32,000 counts
Analog Output Response Time: One update per ladder scan.
Analog Output Conversion Rate: All channels converted once per ladder scan.
Digital Inputs/Outputs, Max: 2048 / 2048
Built-in I/O Points: 22
SmartStix, SmartRail, SmartBlock I/O Support: CsCAN & Ethernet
General Purpose Registers (words): 50000
General Purpose Internal Coils (bits): 32768 (16384 retentive)
Ethernet / Internet:
Ethernet Support: Standard
Remote Access: HTTP or EnvisionRV
Remote File Access: FTP or EnvisionFX
WebOCS Compatibility (Licensed Option): WebMI
