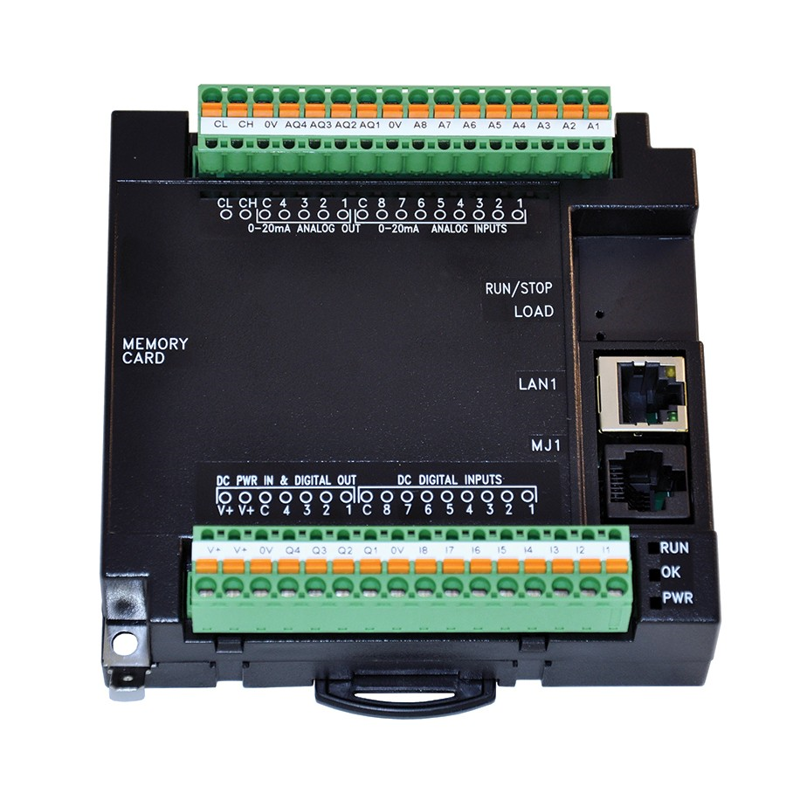

RCC Logic controller with eight (8) Digital inputs compatible
SKU: HE-RCC972-75
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Eight (8) digital inputs that are compatible with 12V/24VDC and four (4) DC outputs make up the RCC972 RCC Controller.
5A per point: Four (4) 12-bit analog outputs and eight (8) 12-bit analog inputs with 0–20 mA each.
The device offers users exceptional input/output choices for a broad range of Process and Discrete Manufacturing applications, with eight digital DC inputs, four digital outputs, eight analog inputs, and four analog outputs.
offers enhanced connection by default supporting both 10/100 Ethernet and CAN.
With CAN included, the RCC can use Horner's CsCAN to support hundreds of remote I/O points.
Buy currently uses Select Automation shop pricing and checkout.
Controller:
Protocols: CsCAN, Ethernet.
Ethernet Connector: RJ45, Auto MDIX.
Serial Port: x1 RS-232 Port, RJ45.
Program Memory Size: 128 KB.
Floating Point Support: Yes.
Autotune PID Capable: Yes.
Logic Scan Rate: 0.04 mS/K.
Removable Media: microSD.
I/O:
Built-in I/O Points: 24.
Digital DC Inputs per Module: 8.
DC Digital Input Voltage Range: 12 VDC / 24 VDC.
Digital DC Outputs per Module: 4.
Digital DC Output – Max Output Supply Voltage: 30 VDC.
Digital DC Output – Max Inrush Current: 650mA per channel.
Analog Input Channels: 8 (0-20 mA).
Analog Outputs per Module: 4 (0-20 mA).
%AQ Full Scale: 0 – 32,000 counts.
Analog Output Response Time: One update per ladder scan.
Analog Output Conversion Rate: All channels converted once per ladder scan.
SmartStix, SmartRail, SmartBlock I/O Support: CsCAN & Ethernet.
General Purpose Registers (words): 50000.
General Purpose Internal Coils (bits): 32768 (16384 retentive).
Ethernet / Internet:
Ethernet Support: Standard.
Remote Access: HTTP or EnvisionRV.
Remote File Access: FTP or EnvisionFX.
WebOCS Compatibility (Licensed Option): WebMI.
