RCC Controller with eight (8) Digital inputs compatible with 12V/24VDC
SKU: HE-RCC972
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

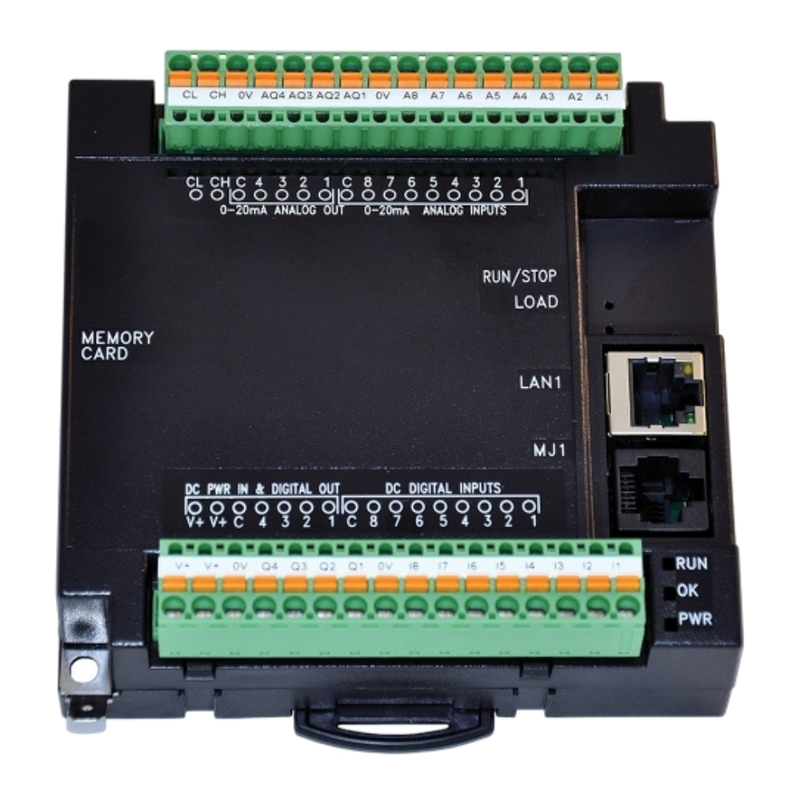

The Horner HE-RCC972 is a compact, screen-less automation controller that integrates control, I/O, and networking into a single rugged package. It supports advanced IEC 61131-3 programming languages, offers built-in digital and analog I/O, and provides flexible connectivity options including Ethernet, serial ports, and CAN networking. Designed for distributed control applications, the RCC972 is DIN-rail mountable and ideal for space-saving industrial automation solutions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Power Supply: 10–32 VDC (steady state 130 mA @ 24 VDC; inrush 30 A for 1 ms)
Logic Memory: 2 MB; supports advanced ladder logic & IEC 61131-3 languages
Scan Rate: 0.04 ms/kB
Digital I/O: 8 digital inputs, 4 digital outputs (max 2048 each)
Analog I/O: 8 analog inputs, 4 analog outputs (max 512 each)
Networking: Standard Ethernet (10/100), CsCAN, RS-232, RS-485
Remote Access: WebMI, HTTP, EnvisionRV support
Mounting: 35 mm DIN rail or panel surface
Terminal Type: Spring clamp, removable
Housing: UL 50 rated plastic, flame-retardant, UV resistant
Operating Temperature: -10 °C to +60 °C
Storage Temperature: -10 °C to +70 °C
Relative Humidity: 5–95% non-condensing
Altitude Rating: Up to 2000 m
Weight: ~283 g (10 oz)
Certifications: CE compliant
