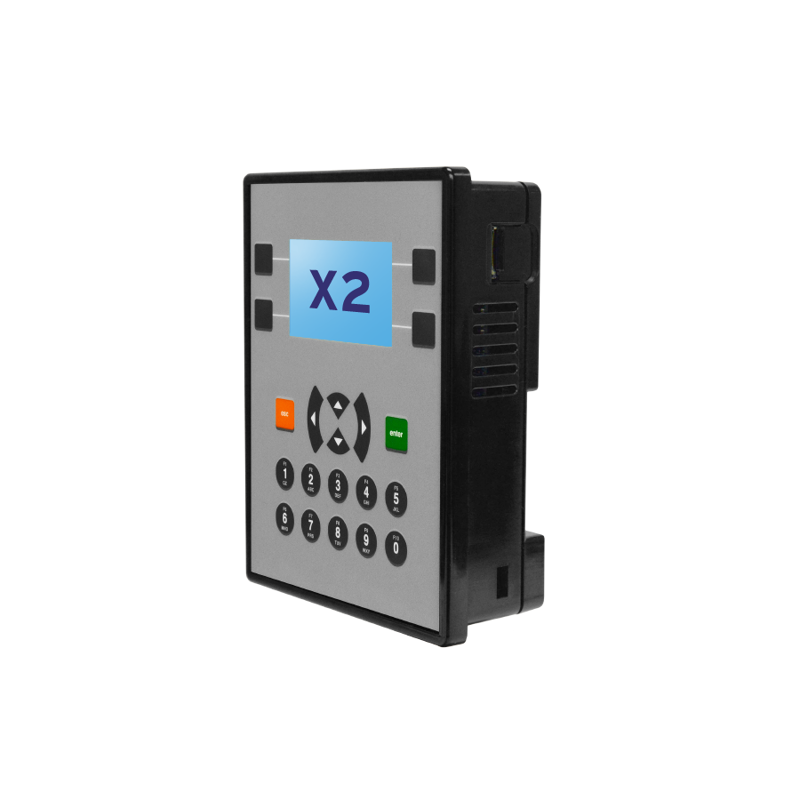

X2 Controller 2.2", 12 DC In, 2 DC Out, 6 Relay Out, 4 Analog In

Description: X2 OCS with Twelve (12) Digital inputs compatible with 24VDc – can be used for four 10KHz High Speed Counters. Six (6) Relay Outputs 3A and two (2) DC sinking outputs. Four (4) 12-bit Analog inputs 0-20mA. Two (2) Analog Outputs 0-20mA. The X2 is the second product of the streamlined Micro OCS Series of embedded I/O controllers. All units feature a built-in logic engine, operator interface, networking, and I/O.
