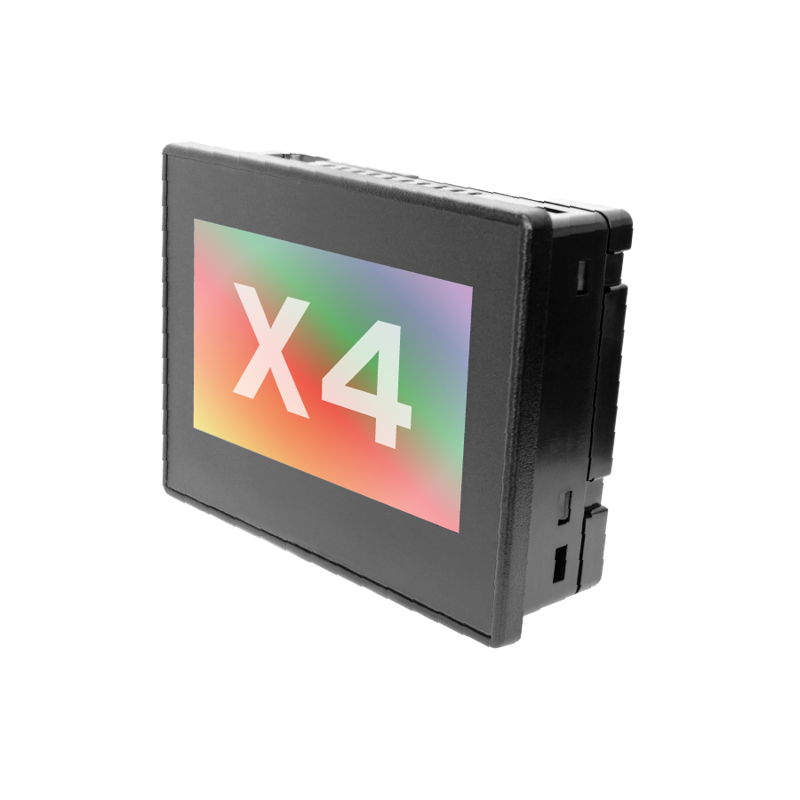

X4 Controller 4.3", 12 DC In, 2 DC Out, 6 Relay Out, 4 Analog In

Description: X4 Colour Touch OCS with DC Relay I/O. Twelve (12) Digital inputs compatible with 24VDC. Can be used for four 10KHz High Speed counters. Six (6) Relay Outputs 3A and two (2) DC sinking outputs. 0.5A per points can be used as PWM/pulse outputs. Four (4) 12-Bit Analog inputs 0-20mA or up to Four (4) RTD inputs. Two (2) Analog outputs 0-20mA (please refer to product datasheet for full specification, UL pending). The X4 is the third product of the streamlined Micro OCS Series of embedded I/O controllers. All units feature a built-in logic engine, operator interface, networking, and I/O.
