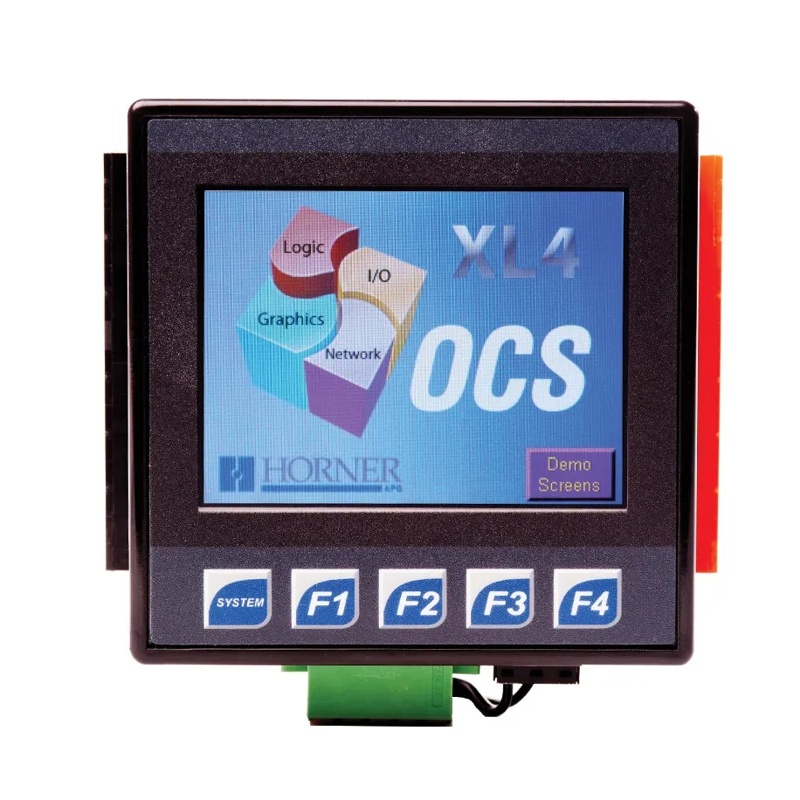

XL4 Controller 3.5", no built in IO, With CAN Open
SKU: HE-XC1E0-200
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Logic engine features 1MB of application memory with a 0.04 mS/K logic scan.
Online Programming Mode (making logic changes on the fly without going thru stop mode) is supported.
Operator Interface features include:
320×240 LCD TFT colour graphics display with a high-resolution resistive touchscreen,
4 function keys and a system key
A USB 2.0 On-the-Go port (mini-B 5pin) is available for programming.
A USB 2.0 Host port (A) is available for exchanging files with USB FLASH drives.
One (1) RS-232 and one (1) 485 port support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols.
Buy currently uses Select Automation shop pricing and checkout.
Networking features include:
A built-in 10/100 Ethernet port, and an integrated CsCAN port.
All units feature a microSD slot, supporting at least 32GB.
With proven success across a wide variety of applications, the XL series is ideal for:
Custom OEM products.
Power management & back-up generation.
Semiconductor applications.
Packaging machinery.
Water treatment.
Compressor control.
Pump control.
Food processing.
Motion control.
Distributed conveyor control.
HVAC/Environmental control.
Mobile machinery.
Automotive parts manufacturing.
