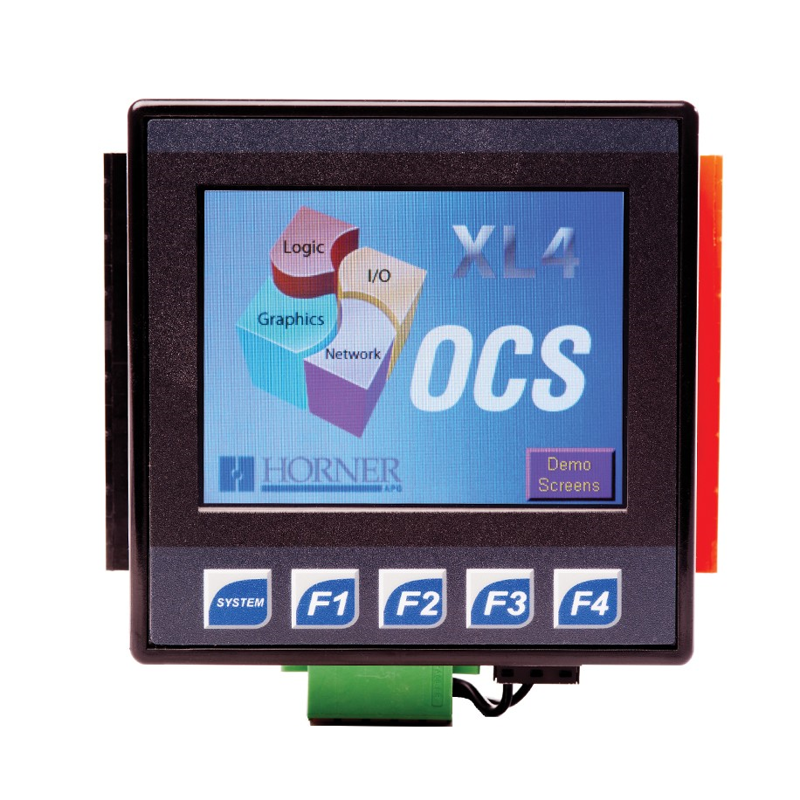

XL4 Controller 3.5", 12 DC in, 12 DC Out, 2 – 14/16-bit Analog In, WebMI License Unlimited pre-loaded
SKU: HE-XC1E5-441
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
WebMI License Unlimited pre-loaded.
XL4 Logic engine features 1MB of application memory with a 0.04 mS/K logic scan.
Online Programming Mode (making logic changes on the fly without going thru stop mode) is supported.
Buy currently uses Select Automation shop pricing and checkout.
Operator Interface features include:
320×240 LCD TFT colour graphics display with a high-resolution resistive touchscreen, 4 function keys and a system key.
A USB 2.0 On-the-Go port (mini-B 5pin) is available for programming.
A USB 2.0 Host port (A) is available for exchanging files with USB FLASH drives.
One (1) RS-232 and one (1) 485 port support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols.
Networking features include:
Built-in 10/100 Ethernet port, and an integrated CsCAN port.
All XL4 units feature a microSD slot, supporting at least 32GB.
