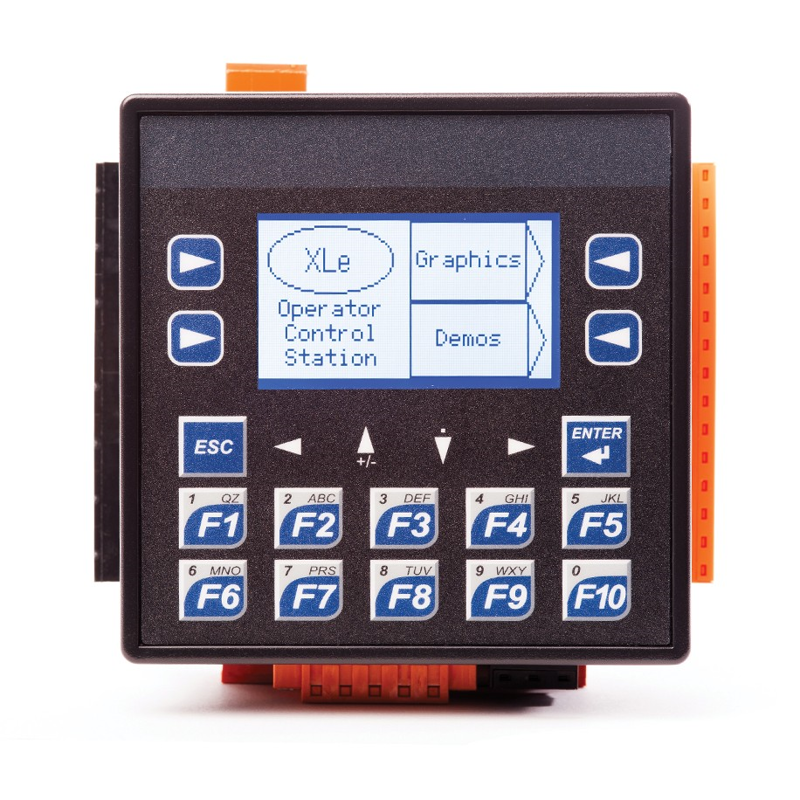

XLE Controller 2.2", 12 DC in, 12 DC Out, 2 – 14/16-bit Analog In
SKU: HE-XE105
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
XLE Series OCS with DC/DC and Universal Analog I/O.
Twelve (12) Digital Inputs Compatible with 12V/24VDC – four- (4) inputs can be used for 10KHz High Speed Counting.
Twelve (12) DC outputs – 0.5A per point – Two (2) outputs can be used as PMW/pulse outputs.
Two (2) 14-bit Universal Analog inputs selectable between Thermocouple, TRD 0-100mV, 0-10V and 4.20mA.
Two (2) 12 Bit Analog outputs selectable between 0-10V and 2-20mA.
Buy currently uses Select Automation shop pricing and checkout.
Features of the XLE Operator Interface include:
128×64 graphical display.
20-key keypad with function key and numeric entry capability.
Logic engine features 256KB of application memory with a 0.7mS/K logic scan.
(2) RS-232/485 ports support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols.
Integrated CsCAN port.
Removable Mass Storage device.
CANopen Master/Slave Support.
With proven success across a wide variety of applications, the XL series is ideal for:
Custom OEM products.
Power management & back-up generation.
Semiconductor applications.
Packaging machinery.
Water treatment.
Compressor control.
Pump control.
Food processing.
Motion control.
Distributed conveyor control.
HVAC/Environmental control.
Mobile machinery.
Automotive parts manufacturing.
