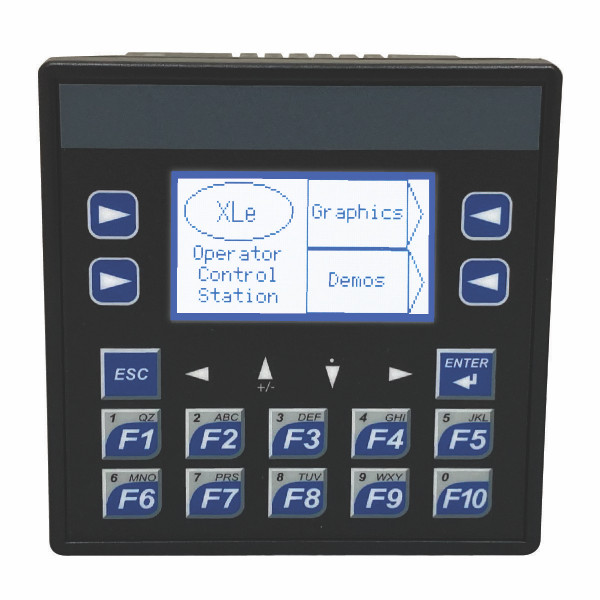

XLE Controller 2.2", 12 DC In, 12 DC Out, 2 Analog In (mA/V/Tc/mV/RTD)
SKU: HE-XE105MM
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Features:
Graphical display size: 128×64.
A 20-key keypad with function keys and numeric entry functionality.
The logic engine has 256KB of application memory and performs a logic scan at 0.7mS/K.
(2) The RS-232/485 ports support the RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloading protocols.
There is an inbuilt CsCAN port.
A removable mass storage device.
CANopen provides master/slave support.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
XLE Controller 2.2", 12 DC In, 12 DC Out, 2 Analog In (mA/V/Tc/mV/RTD), 2 Analog Out.
Ladder Logic Memory: 256 KB.
Logic Scan Rate: 0.7 mS/K.
Removable Memory: microSD.
Characters / Pixels: 128x64.
Display Technology: Transflective LCD.
Character Height: selectable fonts.
Number of Pages: 1023.
Fields or Objects per Page: 50.
Total Keys: 20.
Function Keys: 10.
OEM Faceplate Available: Yes.
Built-in I/O Points: 22-44.
SmartStix, SmartRail, SmartBlock I/O Support: yes, CsCAN.
Digital Inputs / Outputs, max: 2048 / 2048.
Analog Inputs / Outputs, max: 512 / 512.
General Purpose Registers (words): 9,999.
General Purpose Internal Coils (bits): 4,096 (2,048 retentive).
