XLE Controller 2.2", 12 DC in, 12 DC Out, 6 – 14/17-bit Analog In
SKU: HE-XE106
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
XLE Series OCS with DC/DC and Universal Analog I/O.
Twelve (12) Digital Inputs compatible with 12v/24VDC – four (4) inputs can be used for 500KHz High Speed Counting. – Twelve 12) DC Outputs – 0.5A per point.
Two (2) outputs can be used as PWM/pulse outputs.
Six (6) 14-bit Universal Analog Inputs selectable between Thermocouple RTD, 0-60mV, 0-10V and 2-20mA.
Four (4) 12-bit Analog Outputs selectable between 0-10V and 4-20mA.
Buy currently uses Select Automation shop pricing and checkout.

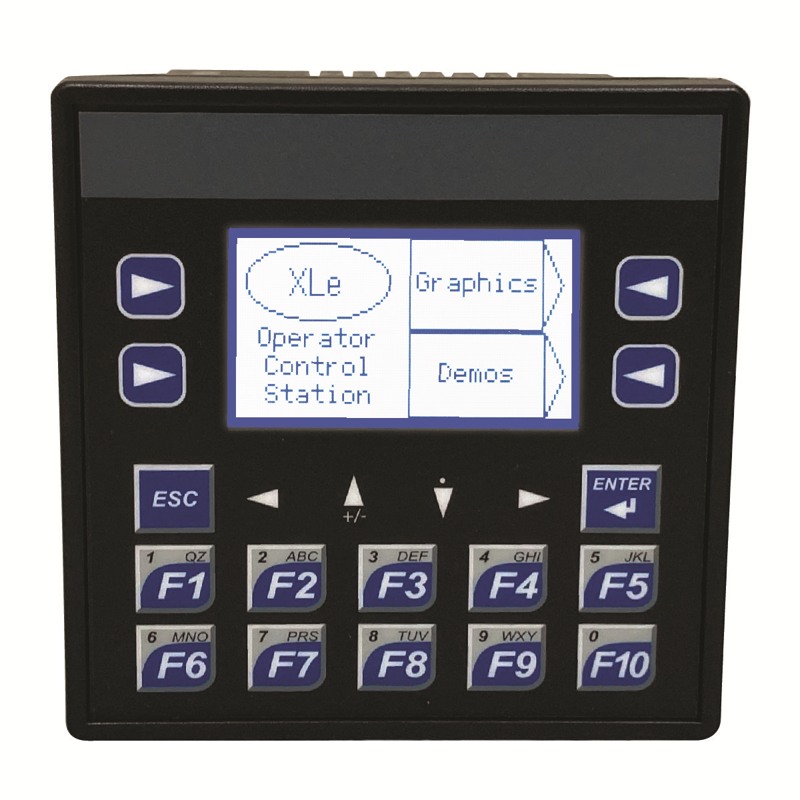

Features of the XLE Operator Interface include:
128×64 graphical display.
20-key keypad with function key and numeric entry capability.
Logic engine features 256KB of application memory with a 0.7mS/K logic scan.
(2) RS-232/485 ports support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols.
Integrated CsCAN port.
Removable Mass Storage device.
CANopen Master/Slave Support.
With proven success across a wide variety of applications, the XL series is ideal for:
Custom OEM products.
Power management & back-up generation.
Semiconductor applications.
Packaging machinery.
Water treatment.
Compressor control.
Pump control.
Food processing.
Motion control.
Distributed conveyor control.
HVAC/Environmental control.
Mobile machinery.
Automotive parts manufacturing.
