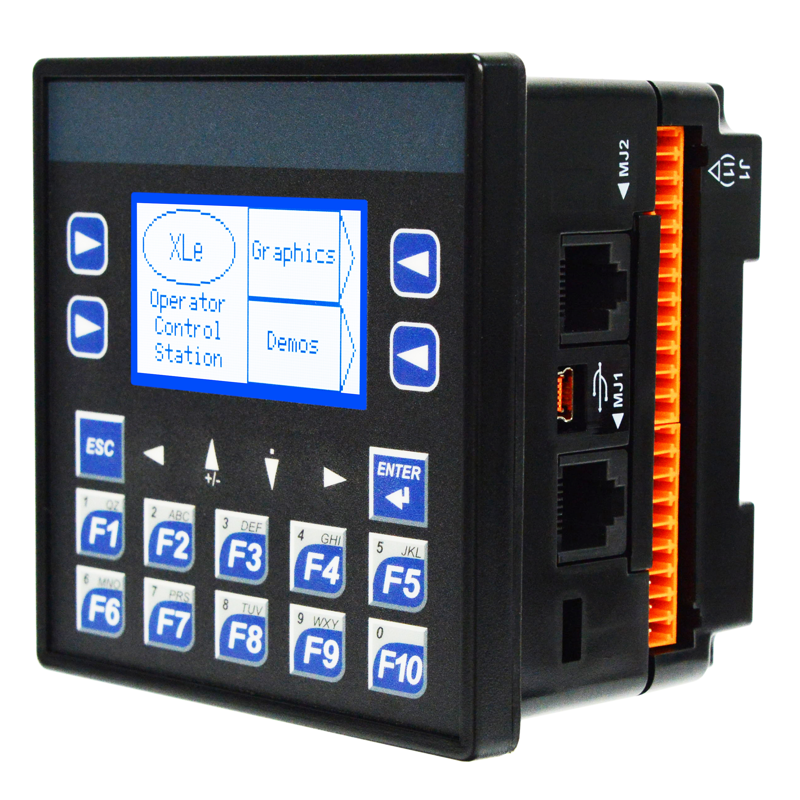

XLEe Controller 2.2", no built in IO, SAE J1939 Option
SKU: HE-XE1E0-44
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Features of the XLEe Operator Interface include:
Standard Ethernet.
128 by 64 graphics on screen.
20-key keypad with a function key and support for entering numerals.
Logic engine has a 0.7mS/K logic scan and 256KB of application memory.
(2) ASCII In/Out, PLC/Drive downloading protocols, and RTU/Modbus Master/Slave are supported by RS-232/485 ports.
Integrated CsCAN port.
Disposable mass storage apparatus.
Master/slave support via CANopen.
Buy currently uses Select Automation shop pricing and checkout.
CONTROLLER:
Ladder Logic Memory: 256 KB
Logic Scan Rate: 0.7 mS/K
Removable Memory: microSD
Local Comment Storage: Yes
Floating Point Support: Yes
Autotune PID Capable: Yes
OPERATOR INTERFACE:
Characters / Pixels : 128x64
Display Technology: Transflective LCD
Character Height: selectable fonts
Number of Pages: 1023
Fields or Objects per Page: 50
Total Keys: 20
Function Keys: 10
OEM Faceplate Available : Yes
