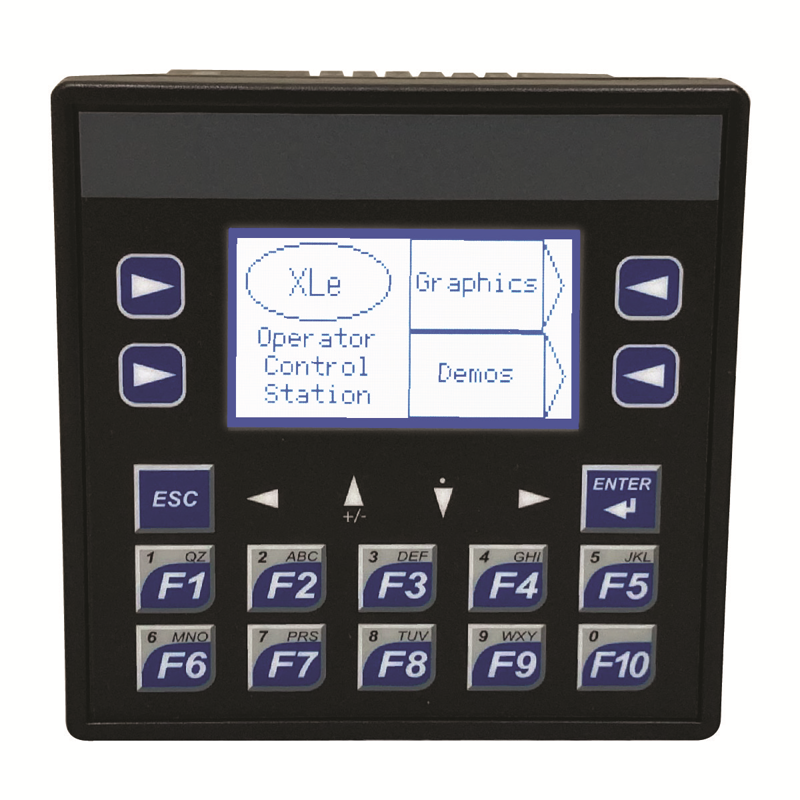

XLEe Controller 2.2", 24 DC in, 16 DC Out, 2 – 12-bit Analog In
SKU: HE-XE1E4
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
XLEe Series OCE with Ethernet High-density DC/DC/ I/O.
Twenty-four (24) Digital Inputs compatible with 12V/24VDC – four (4) inputs can be used for 10KHz High Speed Counting.
Sixteen (16) DC Outputs – up to 0.5A per point.
Two (2) outputs can be used as PMW/Pulse outputs.
Two (2) 10-Bit Analog Inputs selectable between 0-10V and 4-20mA.
Buy currently uses Select Automation shop pricing and checkout.
Features of the XLEe Operator Interface include:
Standard Ethernet.
128×64 graphical display.
20-key keypad with function key and numeric entry capability.
Logic engine features 256KB of application memory with a 0.7mS/K logic scan.
(2) RS-232/485 ports support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols.
Integrated CsCAN port.
Removable Mass Storage device.
CANopen Master/Slave Support.
With proven success across a wide variety of applications, the XL series is ideal for:
Custom OEM products.
Power management & back-up generation.
Semiconductor applications.
Packaging machinery.
Water treatment.
Compressor control.
Pump control.
Food processing.
Motion control.
Distributed conveyor control.
HVAC/Environmental control.
Mobile machinery.
Automotive parts manufacturing.
