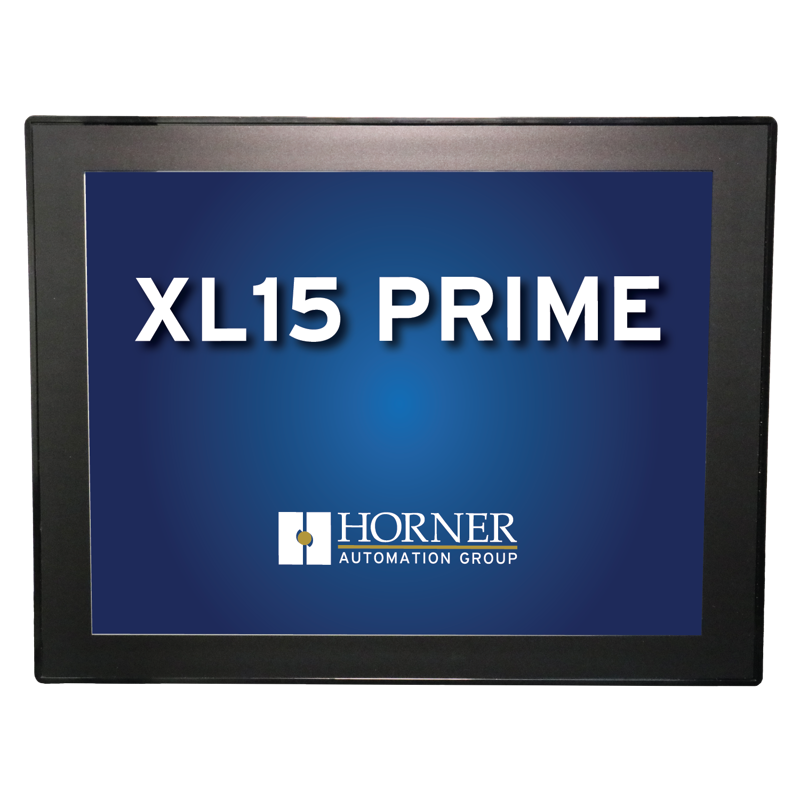

XL15 Prime Controller, 15", 12 DC In, 12 DC Out, 2 Analog In (mA/V/Tc/mV/RTD), 2 Analog Out, dual Ethernet and dual CAN
SKU: HE-XP15E5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The XL15 Prime logic engine has a 0.02mS/K logic scan speed and 2MB of application memory.
It supports Online Programming Mode, which allows you to make modifications to the logic without having to enter stop mode.
Features of the operator interface include:
A 1024x768 LCD TFT colour graphics display featuring a resistive touchscreen with great resolution.
Seven system keys and virtual function keys.
It is possible to program USB-C.
Using USB FLASH drives, files can be exchanged over the USB 2.0 Host port (A).
ASCII In/Out, PLC/Drive downloading protocols, and RTU/Modbus Master/Slave are supported on two (2) RS-232/485 ports.
Buy currently uses Select Automation shop pricing and checkout.
Features of the XL15 Prime Networking include:
Two Ethernet ports (10/100 integrated).
(2) Integrated CAN ports that can concurrently support J1939, DeviceNet Scanner, CANopen, and CsCAN.
Every unit has a microSD slot that can hold at least 32GB of memory.
Specifications:
Display: 15” XGA (1024x768) TFT Colour Touchscreen.
Primary Power Range: 10-30 VDC.
Required Power (steady state): 1800mA @ 10V (18W) / 700mA @ 24V (16.8W).
Required Power (inrush): 25A for <1ms @ 24 VDC.
USB Type C Power: 1.0A @ 5V (5W) No display or I/O.
Battery Life: 7-10 Years Replaceable.
Relative Humidity: 5-95% non-condensing.
Operating Temperature: -10°C to +60°C.
Storage Temperature: -20°C to +70°C.
Weight: 6.97 lbs / 3.16 kg.
Certifications: UL/CE (USA or Europe).
Power Wiring: Connect to Earth Ground, Apply 9 – 30 VDC, Torque rating 4.5 - 7 in·lbs (0.50 – 0.78 N·m).
Ports:
High-Capacity microSD Slot.
USB Type C.
OCS-I/O Expansion Port.
RS-232/RS-485 Serial Ports (3).
USB A Ports.
Mic Input / Audio Output.
Wide-Range DC Power Input.
Dual CAN Ports.
Dual Ethernet LAN Ports.
Optional Built-In I/O.
