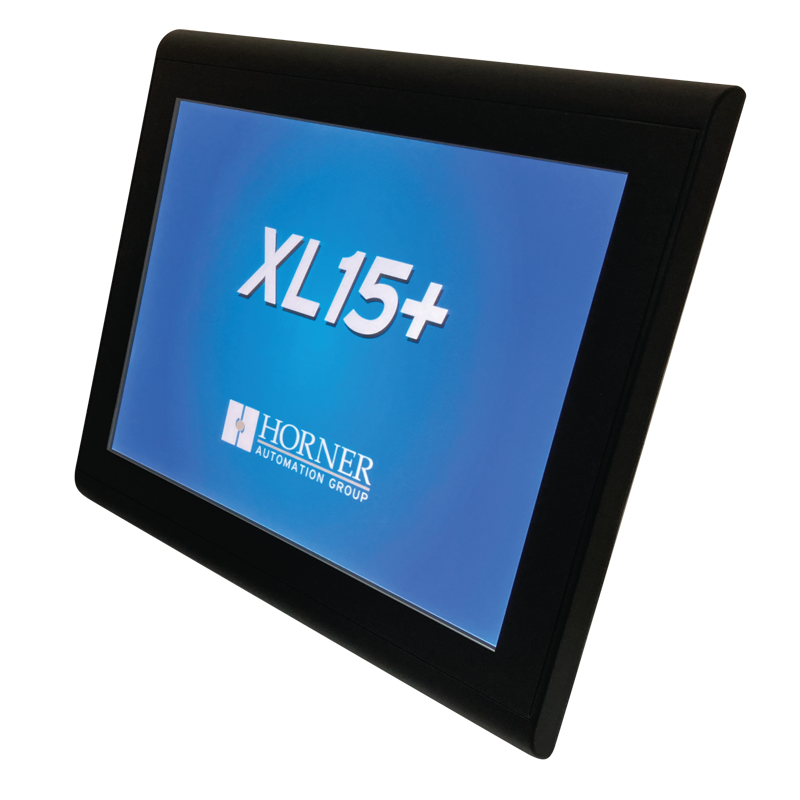

XL15+ Controller, 15", 12 DC In, 12 DC Out, 2 Analog In, (mA/V), dual Ethernet
SKU: HE-XP7E3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
XL+ Series OCS with DC/DC/ I/O.
Twelve (12) Digital inputs compatible with 12V/24VDC – four (4) inputs can be used for 500kHz – High Speed Counters.
Twelve (12) DC Outputs – 0. 5A per point- Two (2) outputs can be used as PWM/ pulse outputs.
Two (2) 12-bit Analog inputs selectable between 0-10V and 4-20mA.
Buy currently uses Select Automation shop pricing and checkout.
Features of XL15+ Series:
The 15″ XL+ OCS is a high-performance all-in-one controller.
This unit features an advanced integrated operator interface with a powerful control engine; featuring multiple USB & serial ports, 2 Ethernet ports and 2 CAN ports.
All units feature a Video Output port, allowing a slave monitor to mirror the content of the main screen.
Supports all available Horner Remote I/O systems.
NEMA 4X rated.
With proven success across a wide variety of applications, the XL series is ideal for:
Custom OEM products.
Power management & back-up generation.
Semiconductor applications.
Packaging machinery.
Water treatment.
Compressor control.
Pump control.
Food processing.
Motion control.
Distributed conveyor control.
HVAC/Environmental control.
Mobile machinery.
Automotive parts manufacturing.
