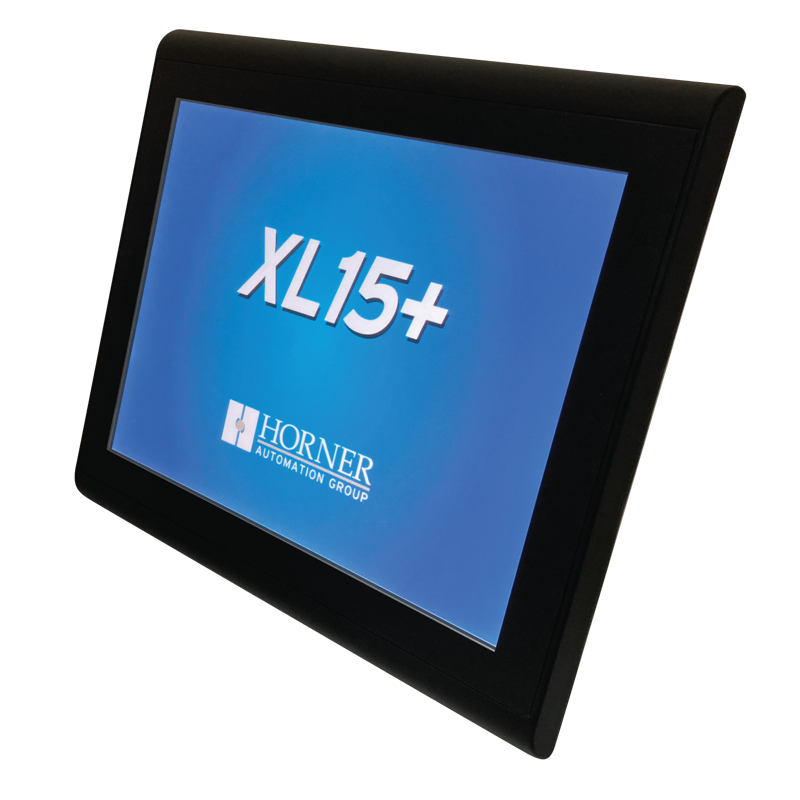

XL15+ Controller, 15", 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD),
SKU: HE-XP7E6
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
XL+ Series OCS with DC/DC Universal Analog I/O.
Twelve (12) Digital inputs compatible with 12V/24VDC – four (4) inputs can be used for 500kHz – High Speed Counting.
Twelve (12) DC Outputs – 0. 5A per point.
Two (2) outputs can be used as PWM/pulse outputs. Six (6) 14-bit Universal Analog inputs selectable between0-10V and 4-20mA.
Operating Temp (- 20°C to 60°C, 0°C to 50°C for quoted T/C specs.
Storage Temp (-30°C to 70°) and Humidity 5-95% RH non-condensing.
Buy currently uses Select Automation shop pricing and checkout.
Features of XL15+ Series
The 15″ XL+ OCS is a high-performance all-in-one controller.
This unit features an advanced integrated operator interface with a powerful control engine; featuring multiple USB & serial ports, 2 Ethernet ports and 2 CAN ports.
All units feature a Video Output port, allowing a slave monitor to mirror the content of the main screen.
Supports all available Horner Remote I/O systems.
NEMA 4X rated.
With proven success across a wide variety of applications, the XL series is ideal for:
Custom OEM products.
Power management & back-up generation.
Semiconductor applications.
Packaging machinery.
Water treatment.
Compressor control.
Pump control.
Food processing.
Motion control.
Distributed conveyor control.
HVAC/Environmental control.
Mobile machinery.
Automotive parts manufacturing.
