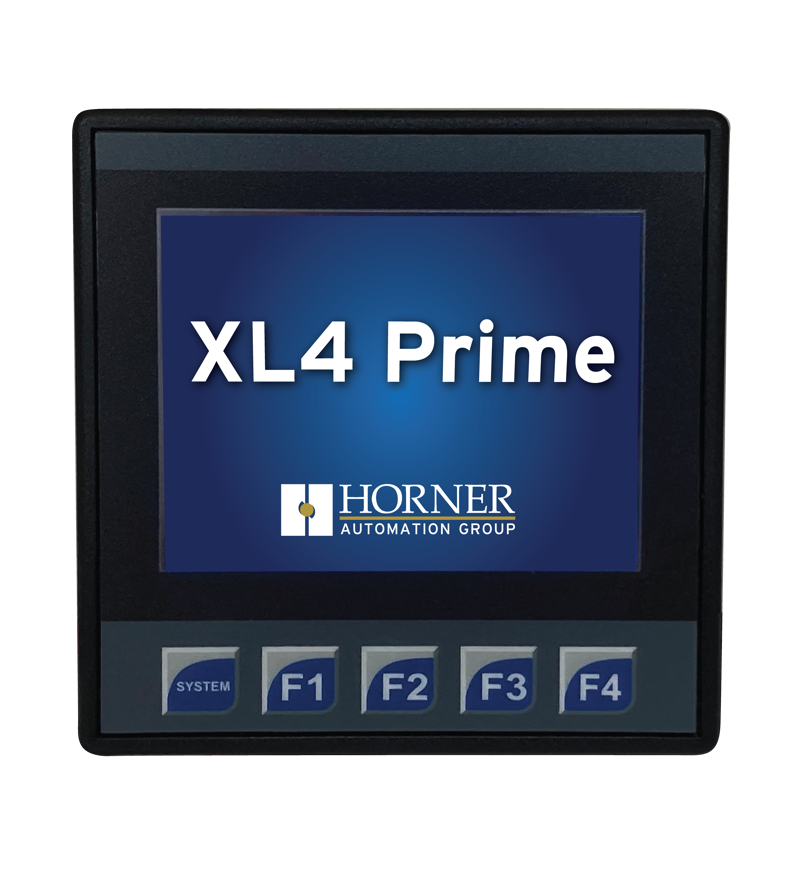

XL4 Prime Controller 3.5" with Improved Performance, no built in IO, with Enhanced IEC License preloaded
SKU: HE-XPC1E0-442
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Enhanced IEC License pre-loaded.
Logic engine has a 0.02mS/K logic scan and 1MB of application memory.
It is possible to make logic modifications in real time without having to enter stop mode by using the Online Programming Mode.
Buy currently uses Select Automation shop pricing and checkout.
Operator interface features include:
A 320x240 LCD TFT colour graphics display with a high-resolution resistive touchscreen, four function keys, and a system key are among the features of the operator interface.
For programming, a mini-B 5pin USB 2.0 On-the-Go port is available.
It is possible to exchange files with USB FLASH drives via a USB 2.0 Host port (A).
XL4 Prime Networking features include:
ASCII In/Out, PLC/Drive downloading protocols, and RTU/Modbus Master/Slave are supported on one (1) RS-232 and one (1) RS-485 connection.
Integrated CsCAN port and 10/100 Ethernet port are examples of networking functionality.
Every unit has a microSD slot that can hold at least 32GB of memory.
