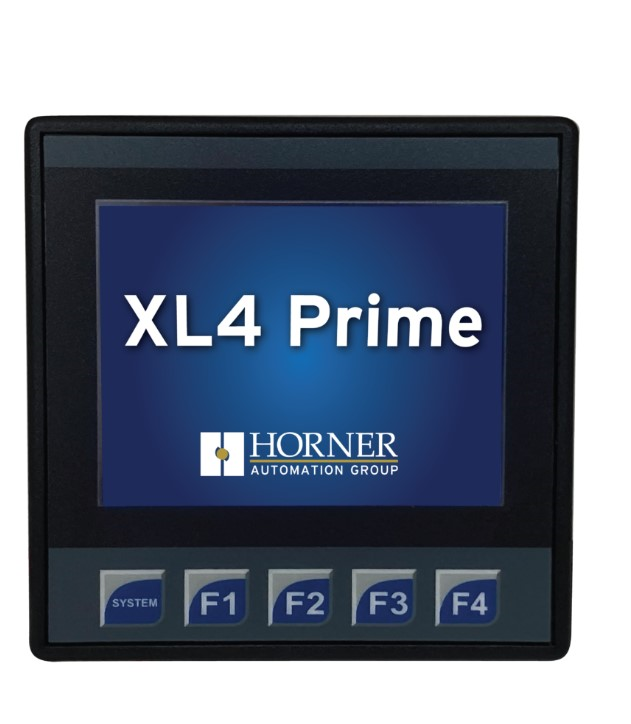

XL4 Prime Controller 3.5" with Improved Performance, 24 DC In, 16 DC Out,

Description: Logic engine has a 0.02mS/K logic scan and 1MB of application memory. It is possible to make logic modifications in real time without having to enter stop mode by using the Online Programming Mode. A 320x240 LCD TFT colour graphics display with a high-resolution resistive touchscreen, four function keys, and a system key are among the features of the operator interface. For programming, a mini-B 5pin USB 2.0 On-the-Go port is available. It is possible to exchange files with USB FLASH drives via a USB 2.0 Host port (A). ASCII In/Out, PLC/Drive downloading protocols, and RTU/Modbus Master/Slave are supported on one (1) RS-232 and one (1) 485 connection. Integrated CsCAN port and 10/100 Ethernet port are examples of networking functionality. Every unit has a microSD slot that can hold at least 32GB of memory.
